3.13.1 Backup Configuration

This page is used to back up the configuration.

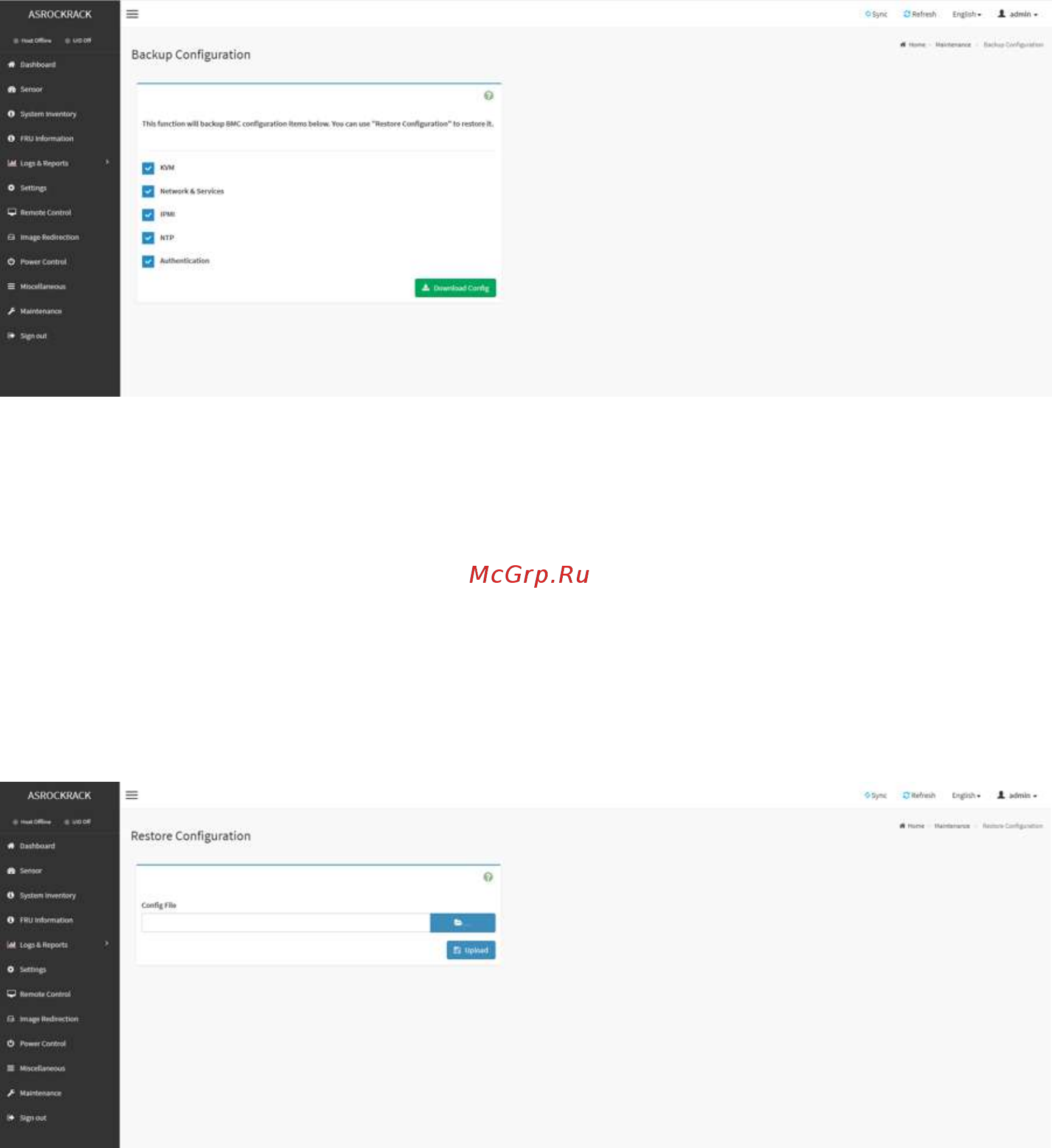

Backup Configuration Page

Download Config: To download and save the configuration files backup from BMC to

client system.

3.13.2 Restore Configuration

This page is used to restore the configuration files from the client system to the BMC.

Restore Configuration Page

Config File: This option is used to select the file which was backup earlier.

Upload: To upload the backup file to restore the backup files.
