Event Filter Configuration: Click the Event Filters section to configure the event

filters in the available slots.

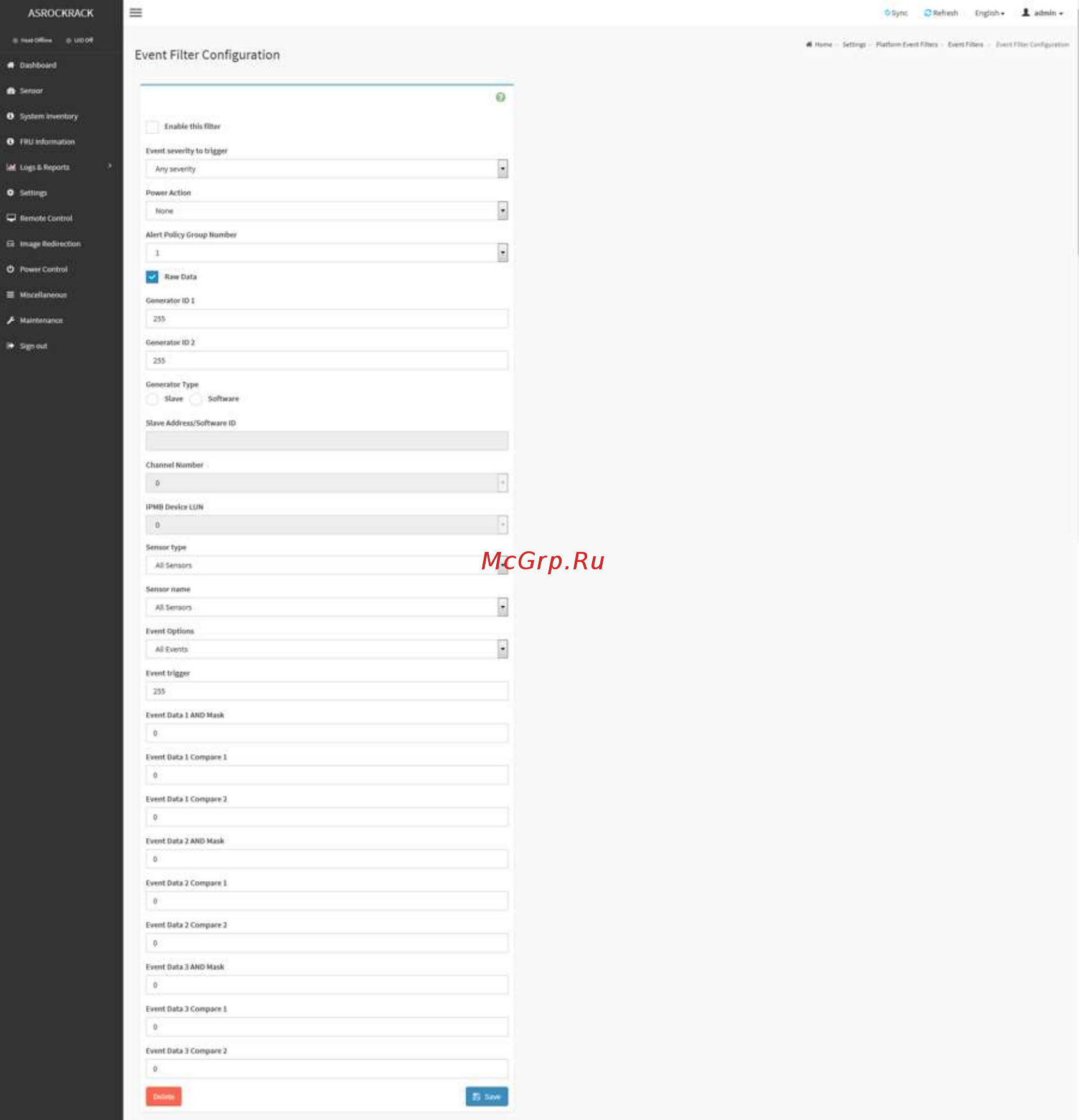

Event Filters Configuration Page

Enable this filter: Check the box to enable the PEF settings.

Event Severity to trigger: Select any one of the Event severity from the list.

Power Action: Select any one of the power action either Power down, Power reset or

Power cycle from the drop-down list

Alert Policy Group Number: Select any one of the alert policy group number from

the drop-down list.

Raw Data: Check the box to fill the Generator ID with raw data.

Generator ID 1: Enter the raw generator ID1 data value.

Generator ID 2: Enter the raw generator ID2 data value.
