ASRock EP2C612D16HM [37/61] Lan destination configuration
![ASRock EP2C612D16-2L2T [37/61] Lan destination configuration](/views2/1694436/page37/bg25.png)
Select the LAN Channel: Select the LAN Channel number.
LAN Destination Configuration: Select any empty slot to configure LAN
Destinations.

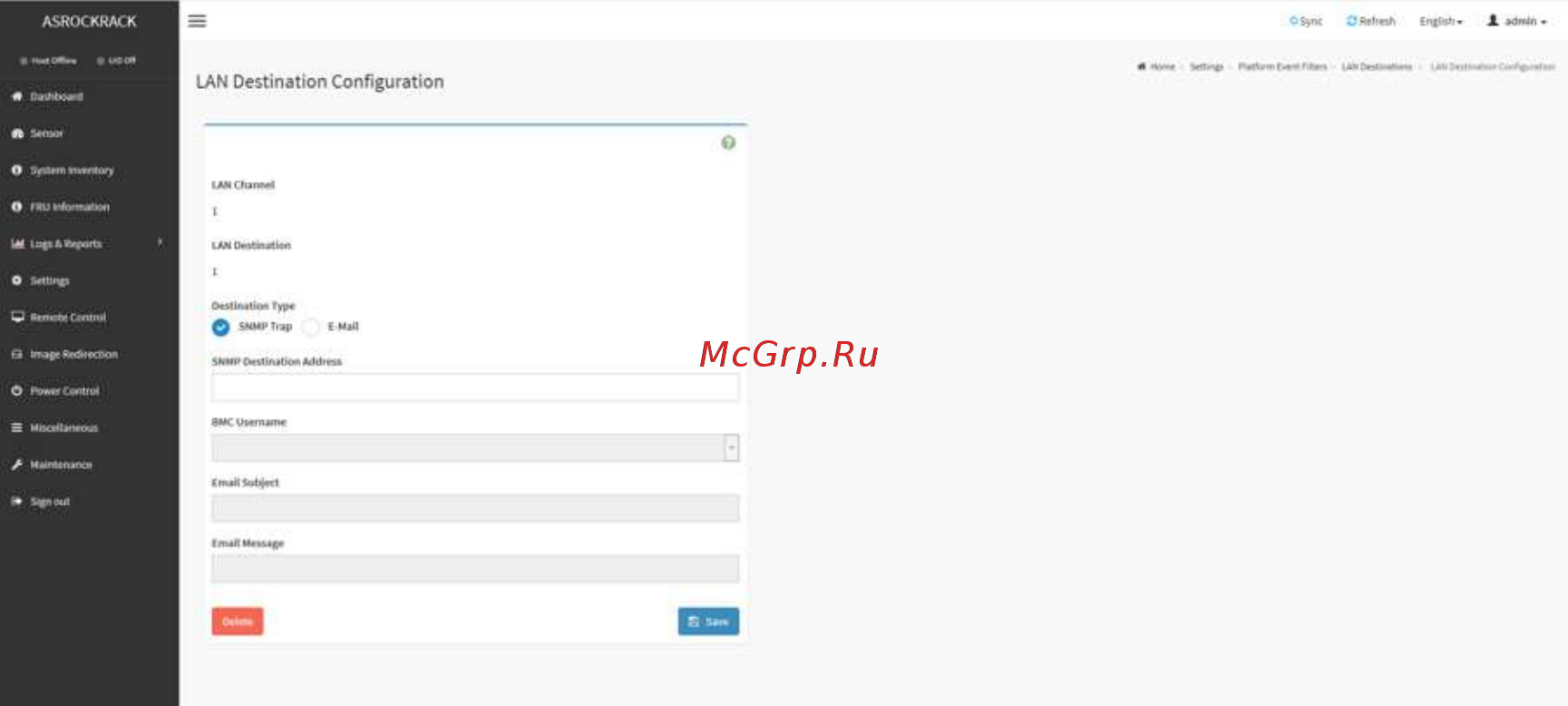

LAN Destination Configuration Page
LAN Channel: Displays LAN Channel Number for the selected slot (read only).
LAN Destination: Displays ID for setting Destination Selector of Alert Policy (read
only).
SNMP Destination Address: Destination type can be either an SNMP Trap or an
E-mail alert. For E-mail alerts, the four fields - SNMP Destination Address, BMC User
Name, Email subject and Email message needs to be filled. For SNMP Trap, only the
SNMP Destination Address has to be filled.
BMC User Name: If Destination type is Email Alert, then choose the user to whom
the email alert has to be sent.
Email Subject & Email Message: These fields must be configured if email alert is
chosen as destination type. An email will be sent to the configured email address of
the user in case of any severity events with a subject specified in subject field and
will contain the message field’s content as the email body. These fields are not
applicable for ‘AMI-Format’ email users.
34
