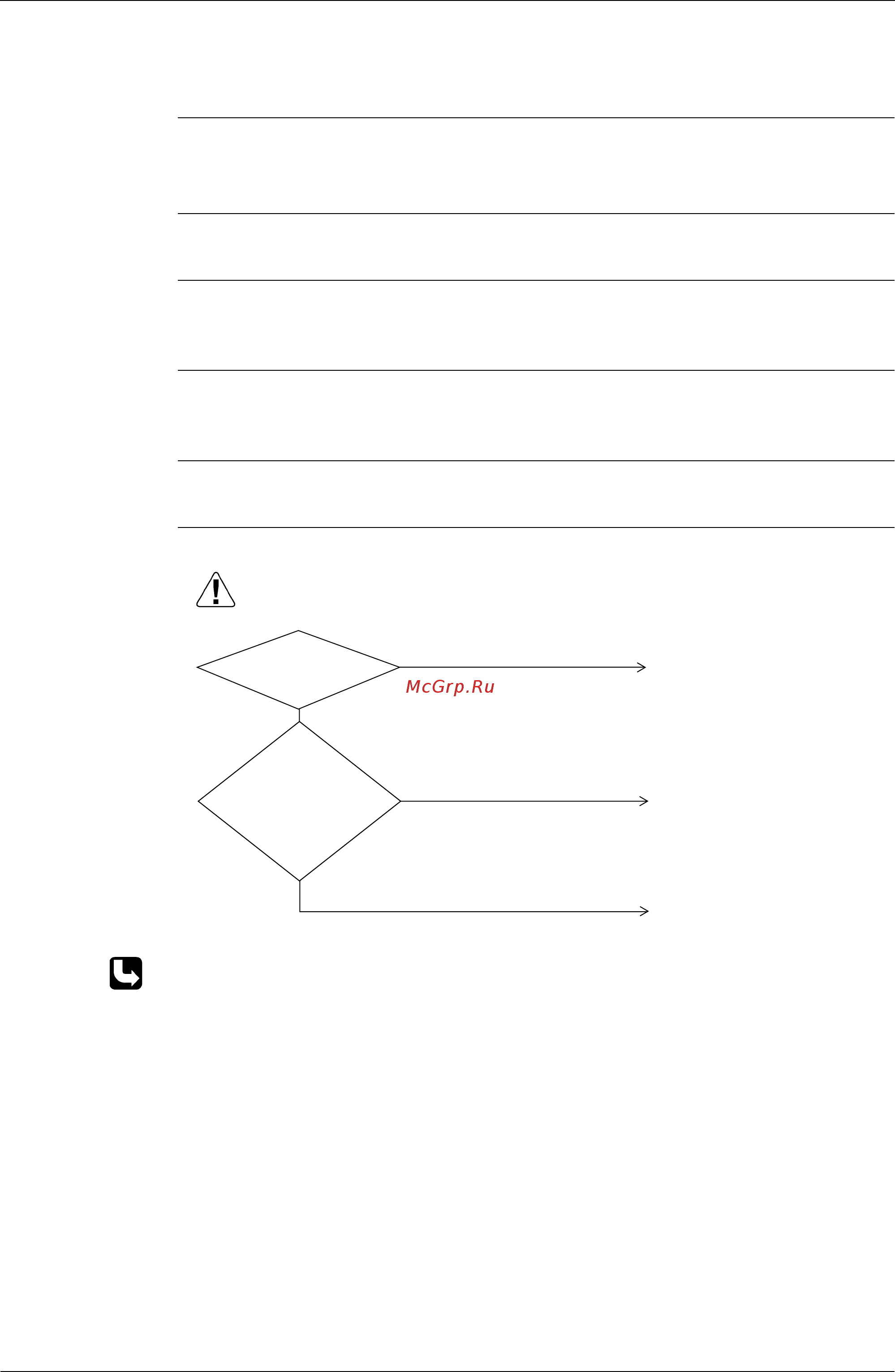

Troubleshooting by Indication on the Remote Controller SiBE34-802
160 Troubleshooting
3.15
“
CA
”
Indoor Unit: Malfunction of Thermistor for
Discharge Air
Remote
Controller
Display
CA
Applicable
Models
AII indoor unit models
Method of
Malfunction
Detection
Malfunction detection is carried out by temperature detected by discharge air temperature
thermistor.
Malfunction
Decision
Conditions
When the discharge air temperature thermistor becomes disconnected or shorted while the unit
is running.
Supposed
Causes
Defect of indoor unit thermistor for air outlet
Defect of indoor unit PC board
Troubleshooting
∗
Refer to thermistor resistance / temperature characteristics table on P251.
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Replace the indoor unit PC board.
Connect the thermistor and turn
on again.
NO
NO
Replace the thermistor.
YES
YES
Connector
is connected to the indoor
unit PC board.
Resistance
is normal when
measured after
disconnecting the thermistor
from the indoor unit
PC board.
(7.2kΩ~
112kΩ)
(V2786)
