Functional Parts Layout SiBE34-802
46 Refrigerant Circuit

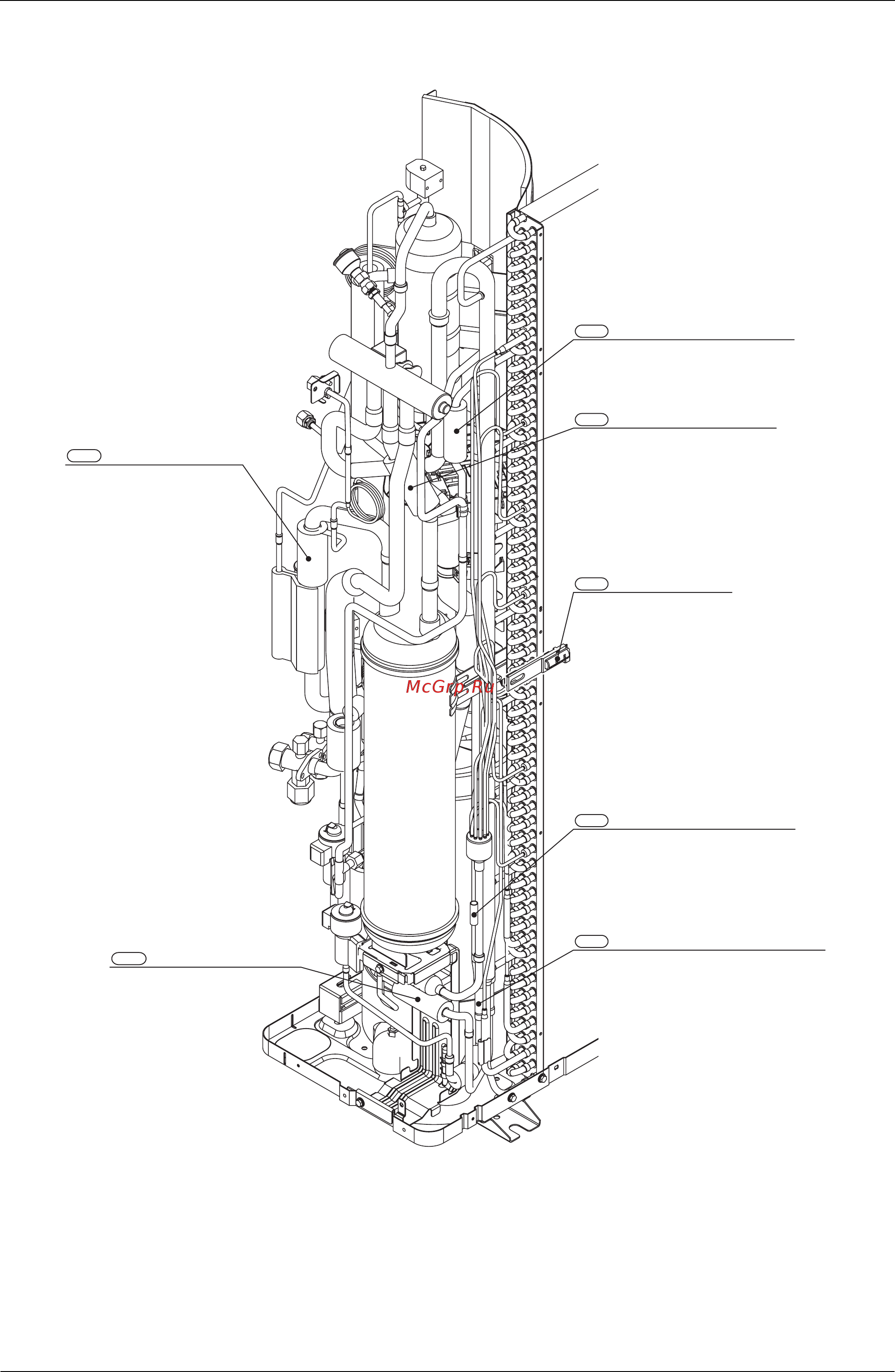

Back view
R5T
THERMISTOR (SUCTION 2)
(MARKING COLOR : GREEN)
R7T
THERMISTOR (LIQUID PIPE 1)
(MARKING COLOR : BLUE)
R3T THERMISTOR (SUCTION 1)
(MARKING COLOR : RED)
R1T THERMISTOR (AIR)
(MARKING COLOR : YELLOW)
R8T THERMISTOR (LIQUID PIPE 2)
(CONNECTOR COLOR : WHITE)
R4T THERMISTOR (HEAT EXCHANGER)
(CONNECTOR COLOR : BLUE)
R6T THERMISTOR (SUBCOOLING)
(MARKING COLOR : WHITE)
