Chapter 4. ICA-312 – 25M Infrared Internet Camera

4.1 Package Content

ICA-312 x 1

Power Adapter x 1

Wall Mount Accessories x 1

CD Disk x 1

Quick Installation Guide x 1

Note

1. if any of the above items are missing, please contact your dealer

immediately.

2. Using a power supply with a different voltage that the one

included with the ICA-312 will cause damage and void the

warranty for ICA-312.

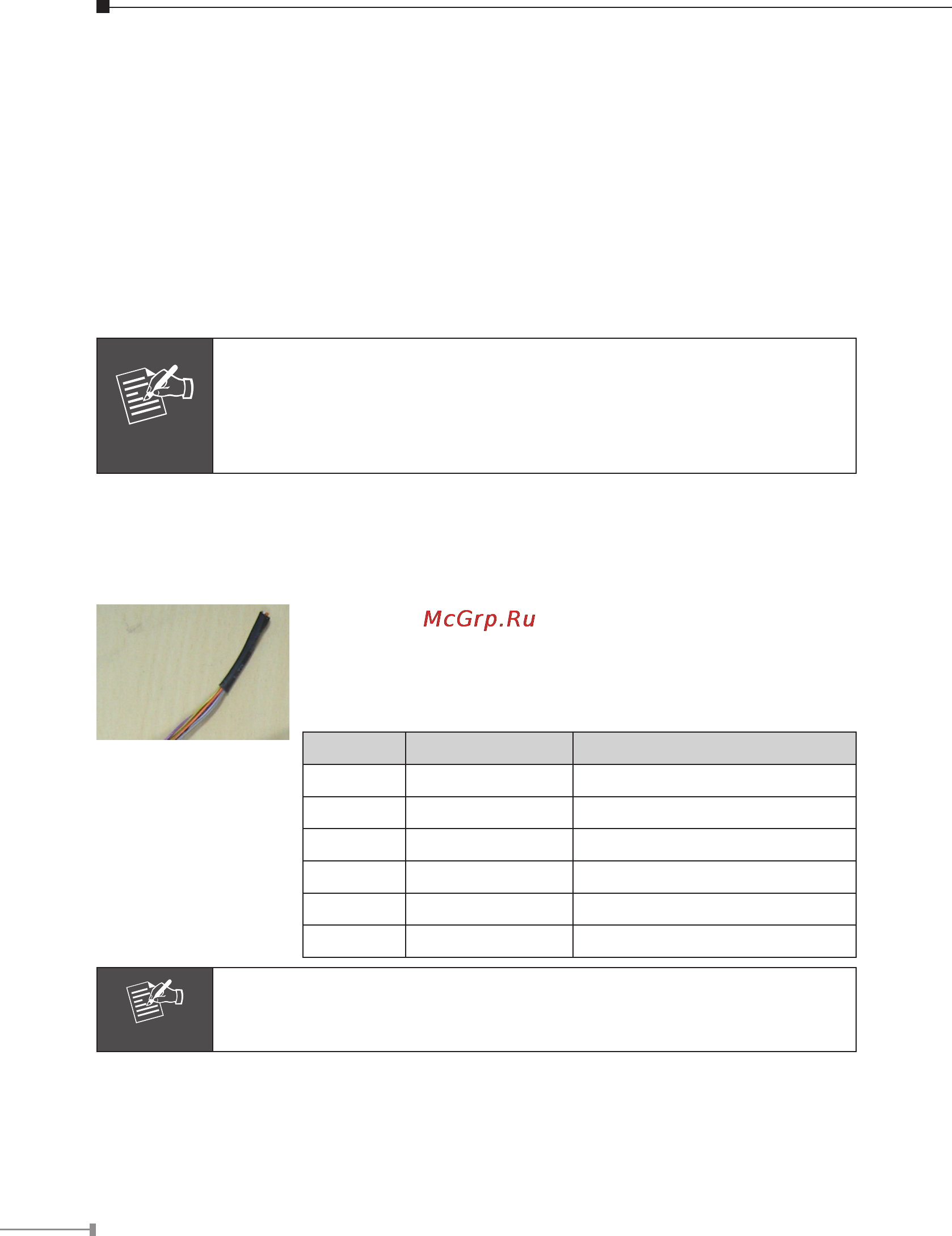

4.2 Physical Details

IdenticationofICA-312cables

RS-485 & DI/DO:

Connect RS-485 to external scanner and connect to sensor

in and alarm out devices.

CableforI/Oconnectors:

Name Cable Color Function

12VDC Gray DC 12V (50mA maximum)

GND Light purple GND

D+ Yellow RS485 data +

D- Orange RS485 data -

DI Stripe purple Digital signal input

DO Dark purple Digital signal output

Note

The RS-485 of ICA-312 is master that can control external scanner.
