Chapter 5. ICA-350 – 30M Infrared Internet Camera

5.1 Package Content

ICA-350 x 1

Power Adapter x 2 (one for ICA-350, another for heater)

Wall Mount Accessories x 1

CD Disk x 1

Quick Installation Guide x 1

Note

1. if any of the above items are missing, please contact your dealer

immediately.

2. Using a power supply with a different voltage that the one

included with the ICA-350 will cause damage and void the

warranty for ICA-350.

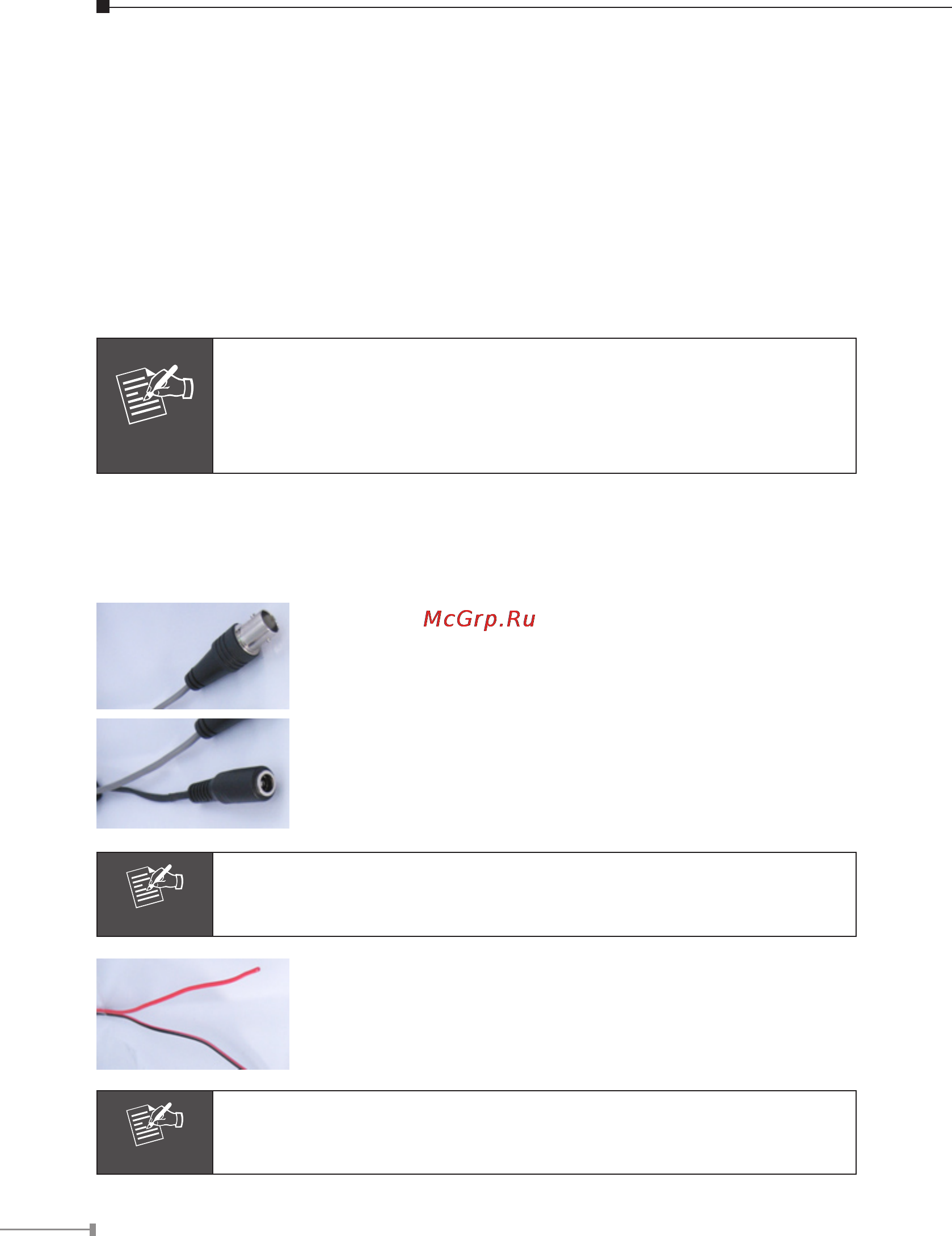

5.2 Physical Details

IdenticationofICA-350cables

Video Output Connector (BNC port)

The ICA-350 also provides composite video output. User

can use BNC video cable to connect the ICA-350 with a TV

monitor or DVR.

PowerConnector(forICA-350)

The input power is 12VDC. It supply two adapters that one

for heater and the other for camera.

Note

Supplies the power to the ICA-350 with the power adapter included

in package.

RS-485 (Black: D- / Red: D+)

Connect to a Pan/Tilt scanner unit.

This connector is built inside the ICA-350 housing.

Note

The RS-485 of ICA-350 is master that can control external scanner.
