Planet ICA-312 [11/40] Hardware installation

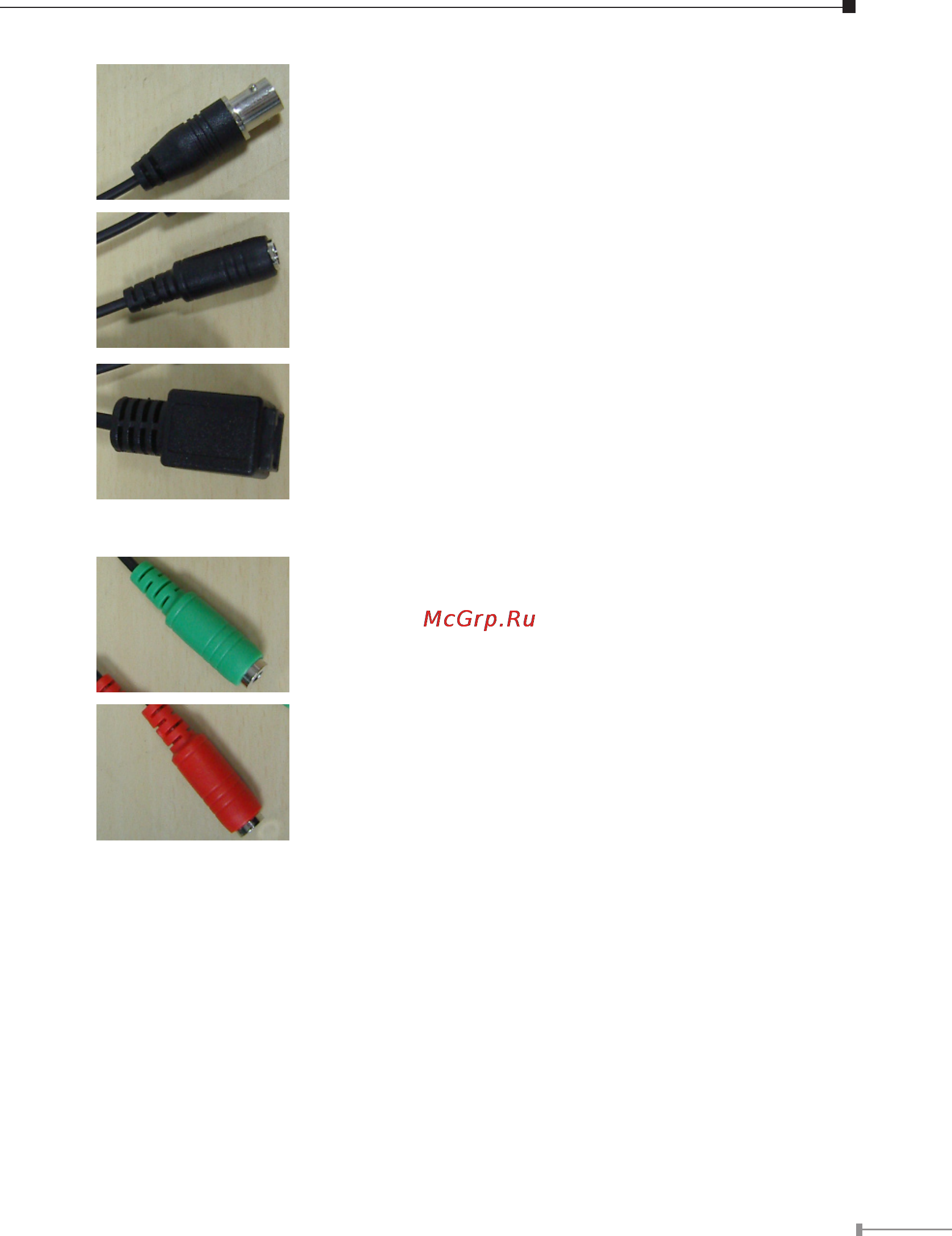

Local Video output (BNC port):

The Network Camera also provides composite video output.

User can use BNC video cable to connect the Network

Camera with a TV monitor or VCR.

DC-in Jack:

The input power is 12VDC. Note that supply the power to

the Network Camera with standard power adapter included

in package. Otherwise, the improper power adapter may

damage the unit and result in danger.

RJ45 LAN socket:

Connect to PC or Hub/Switch. For connect to 10Base-T

Ethernet or 100Base-TX Fast Ethernet cabling. This Ethernet

port built N-Way protocol can detect or negotiate the

transmission speed of the network automatically. Please use

Category 5 “straight through” cable to connect the ICA-312

to a 100Mbps Fast Ethernet network switch or hub.

Line out (audio out):

Connect a loud speaker to the ICA-312. This function is for

voice alerting and two-way audio.

Line in (audio in):

Connect an audio input source to the ICA-312.

4.3 Hardware Installation

1. Fix ICA-312 to the location with wall mount xture.

2. Plug-in Ethernet Cable into RJ-45 LAN port. Connect an Ethernet cable to the

LAN port on the ICA-312 and connect the other side of the Ethernet cable to a

hub/switch.

3. Connect the attached two power adapters to camera and plug-in this two

adapters into power outlet.

4. Connect Video BNC connector to a local TV monitor or DVR if necessary.

5. Done.
