Video-in Jack

You can install an analog camera and connect it to video-in jack.

12V DC-Out Jack

The output power is 12V DC. This is used to supply 12V DC power to one external

camera. The output power is 12V DC, 400mA maximum. The output power still

supplies 12 V DC, 400mA power to one external, when the IVS-110 obtains power

from PoE switch.

DI/DO/RS-485 Connector

This IVS-110 provides a general I/O terminal block with one digital input and one

output for device control. It has 6 Pins that from left to right that are 12V DC

power supply (50mA maximum), Alarm Input, GND, Alarm Output, D+ terminal of

RS-485 and D- terminal of RS-485.

Note

The RS-485 of IVS-110 is master that can control external scanner

or PT camera.

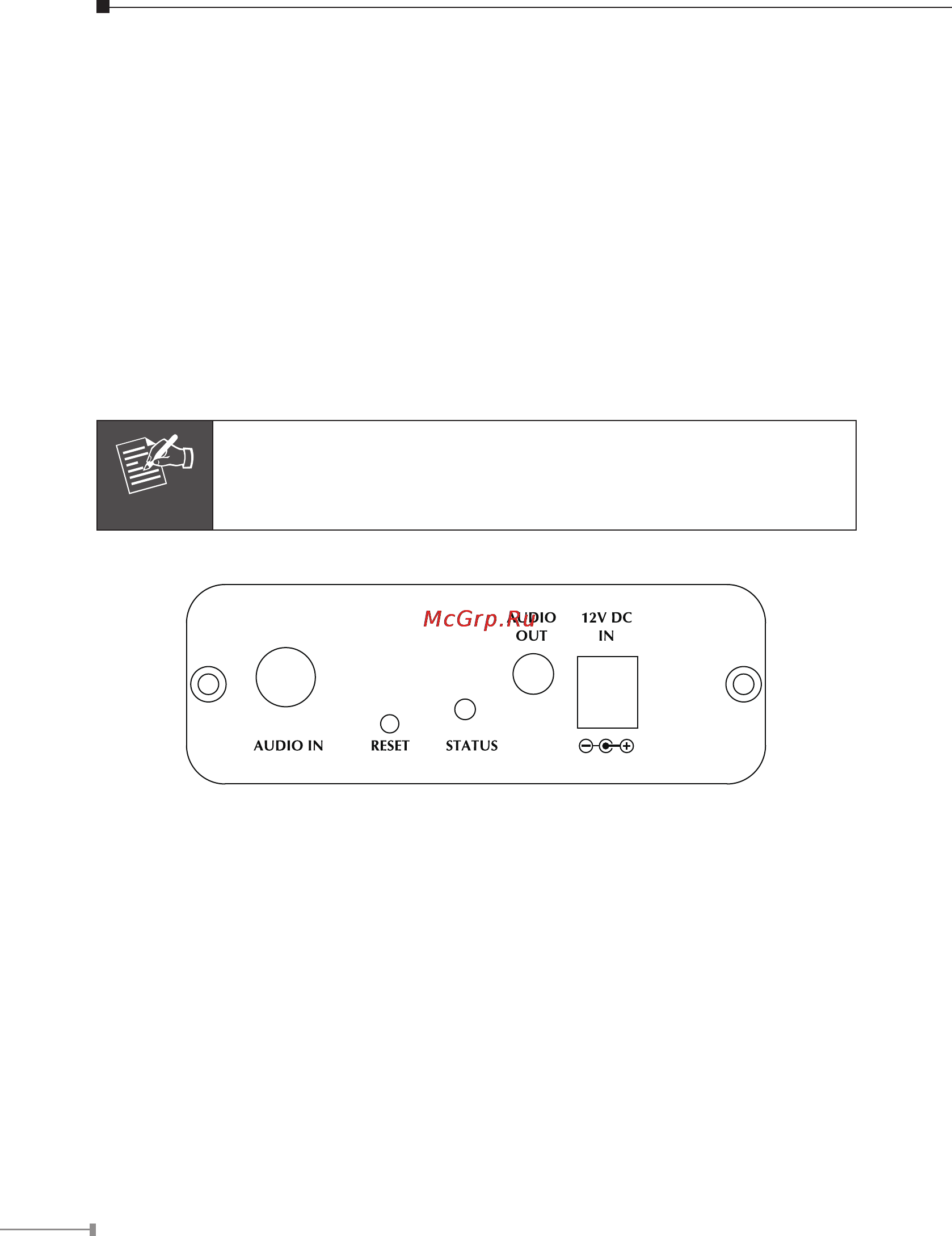

2.2.2 Back Panel

Audio-in Jack

Audio-in (line level) jack allows any device that could input audio.

Reset Button

This button is hidden in the pinhole. Please refer to the Appendix A in manual for

more information.

Status LED

The Status LED will turn green while system is booting up successfully. This LED

is also used to indicate the status of network connection. The LED will ash green

while some on access the IVS-110.

Audio-Out Jack

Audio-out Jack allows this device to output audio or alerting sound.
