VPN

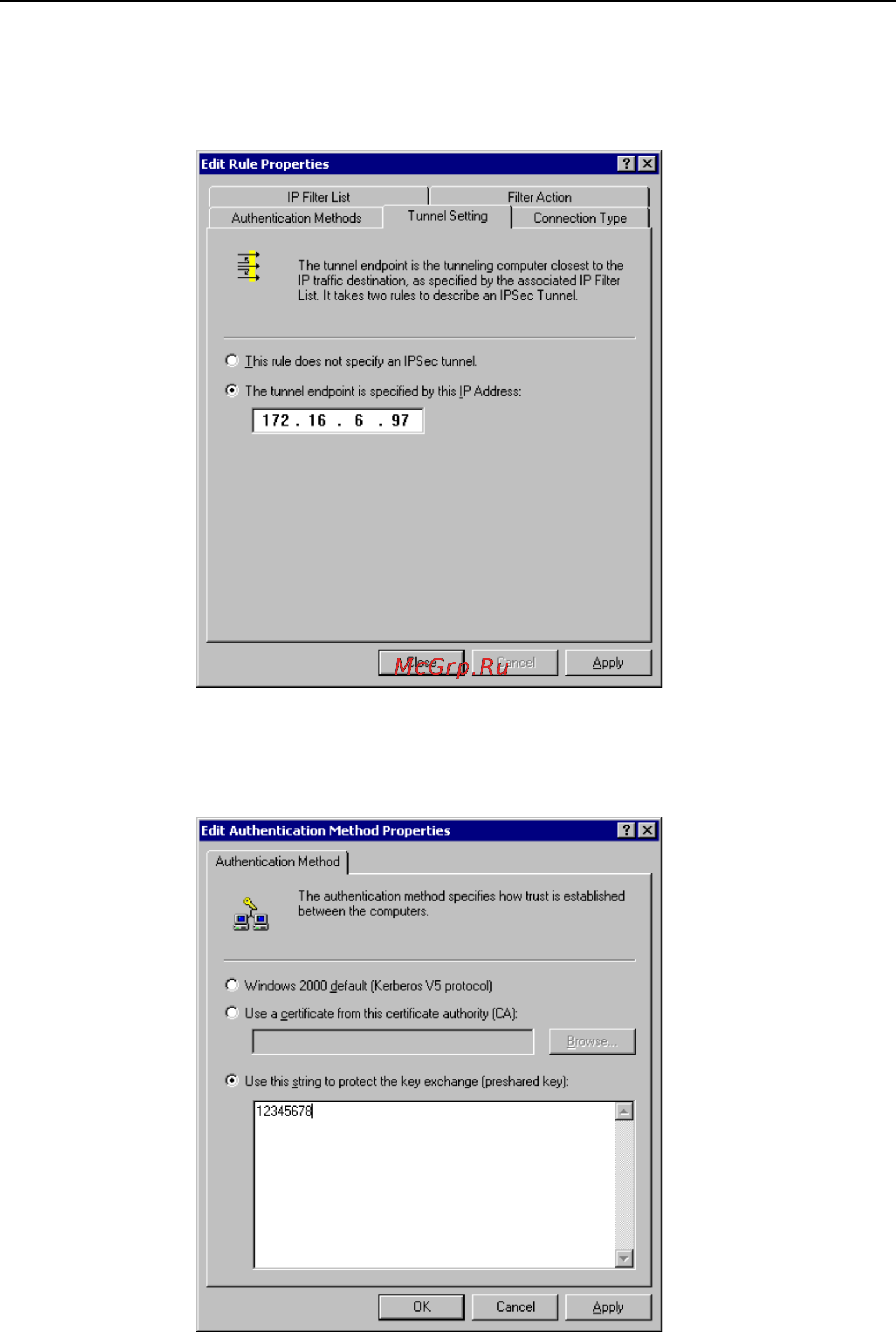

15. Click the Tunnel Setting tab, then select The tunnel endpoint is specified by this IP

address. Enter the WAN (Internet) IP address of VRT-401, as shown below.

Figure 64: Tunnel Setting

16. Click the Authentication Methods tab, then click the "Edit" to see the screen like

the example below.

Figure 65: Authentication Method

17. Select Use this string to protect the key exchange (preshared key), then enter your

preshared key in the field provided.

18. Click "OK" to save your changes and return to the Authentication Methods tab of

the Edit Rule Properties screen.
