VRT-401 User Manual

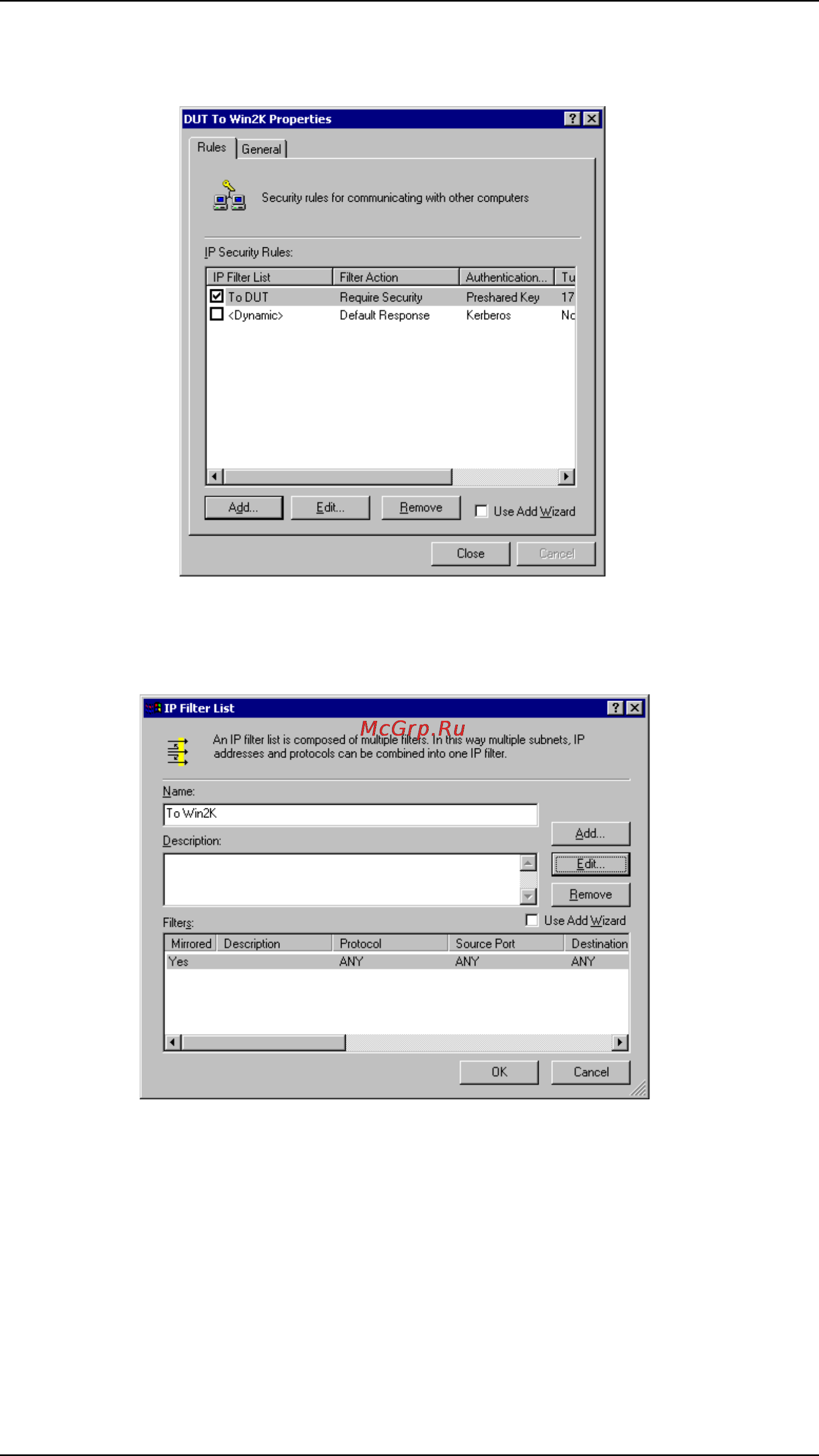

19. Click "Close" to return to the DUT to Win2K properties screen. The "To DUT" filter

should now be listed, as shown below.

Figure 66: Windows 2000/XP Client to VRT-401

20. To add the second (outgoing) rule, click "Add". For the name, enter "To Win2K",

then click "Add".

Figure 67: Windows 2000/XP Client to VRT-401

21. Enter the Source IP address and the Destination IP address as shown below.

· Since this is the incoming filter, the Source IP address is the address range

used on the remote LAN and the Destination IP address is "My IP address".

· Ensure the Mirrored option is checked.
