VPN

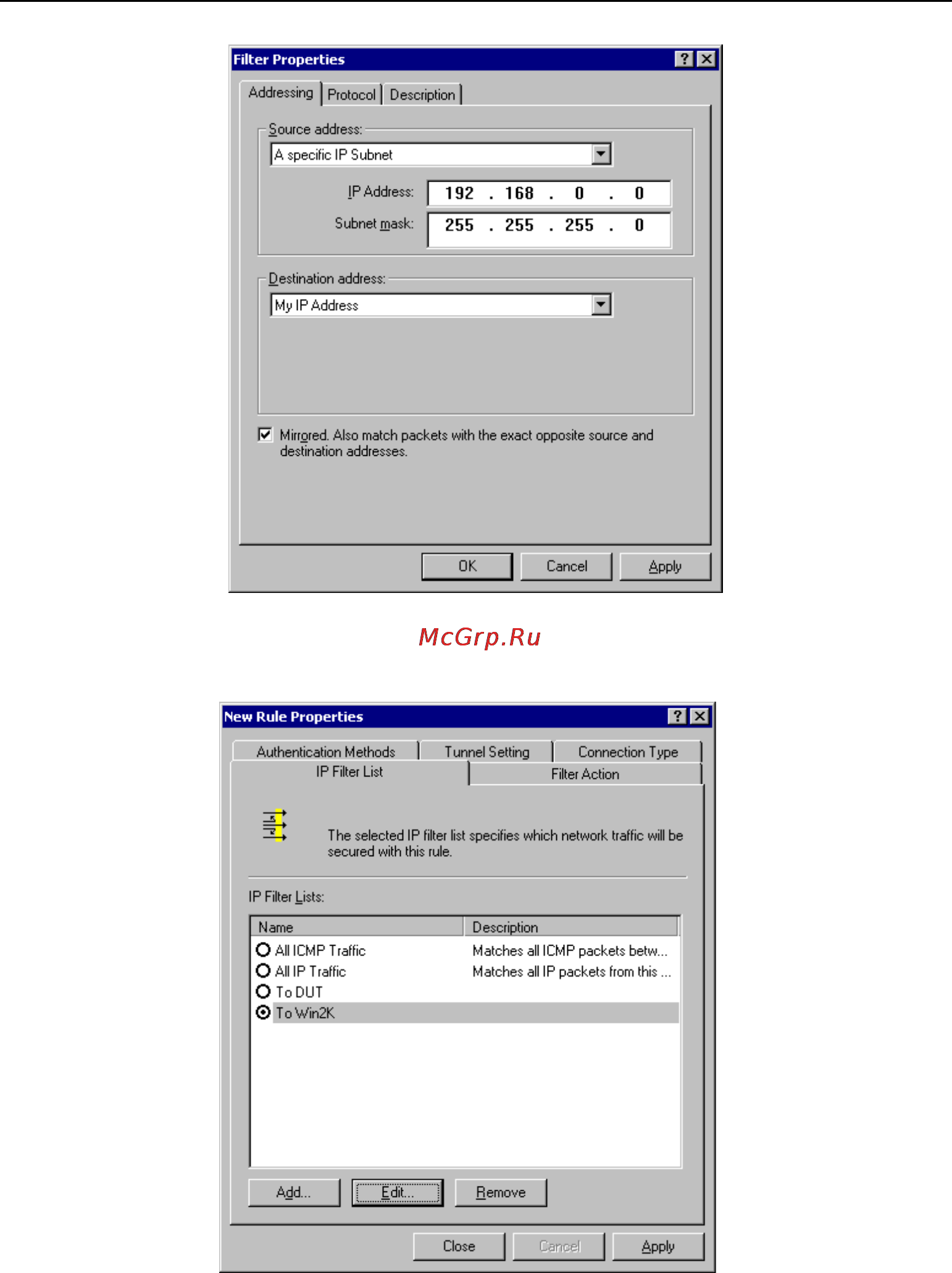

Figure 68: Filter Properties: Addressing

22. Click "OK" to save your changes, then "Close".

Figure 69: Filter List

23. Ensure the "To Win2K" filter is selected, then click the Filter Action tab.
