VRT-401 User Manual

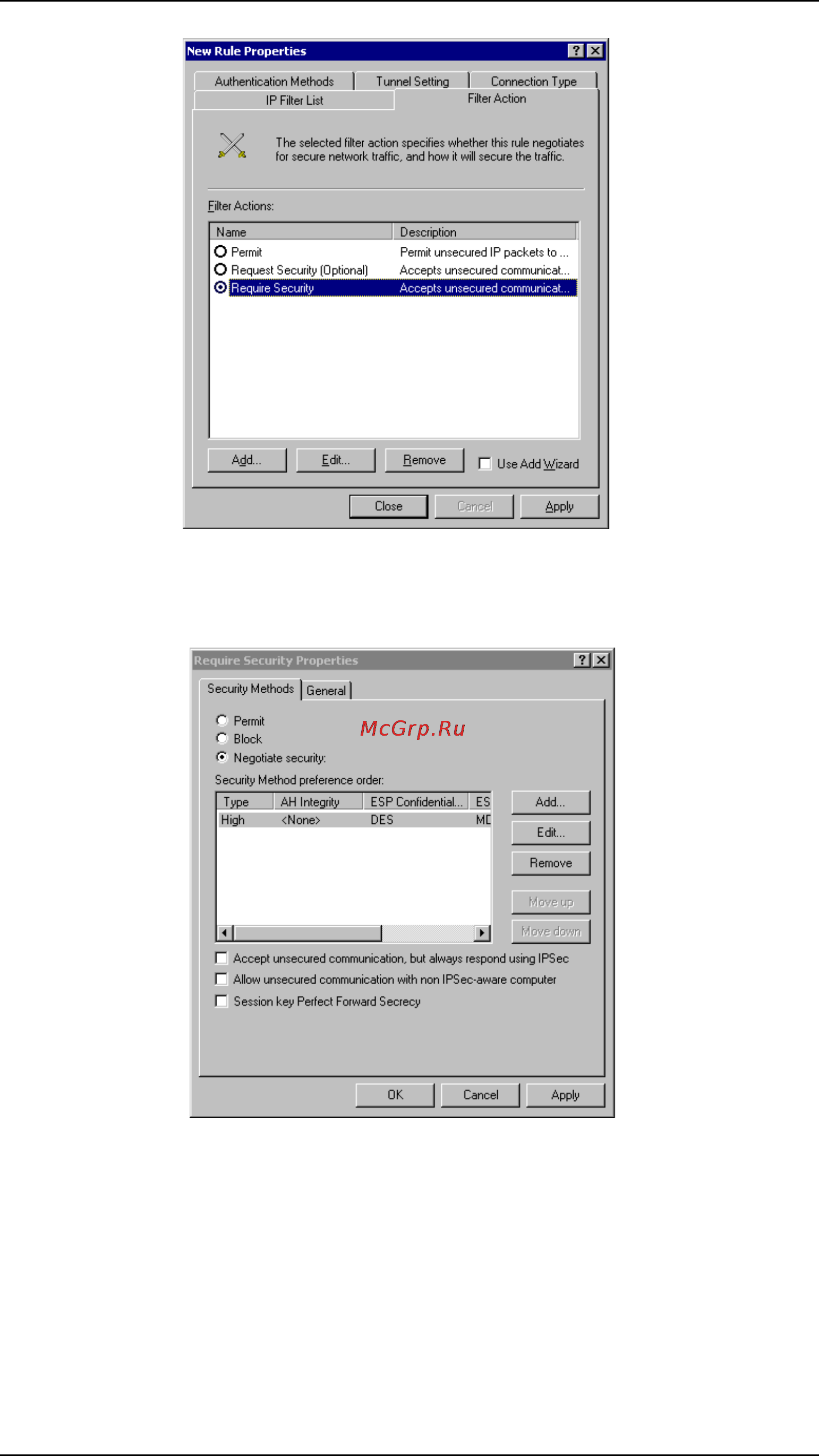

Figure 70: Filter Action

24. Select Require Security, then click "Edit". On the Require Security Methods screen

below, select Negotiate security.

Figure 71: Security Methods

25. Click the "Add" button. On the resulting Modify Security Method screen below,

select High [ESP].
