MH-2001 Multi-Homing Security Gateway User’s Manual

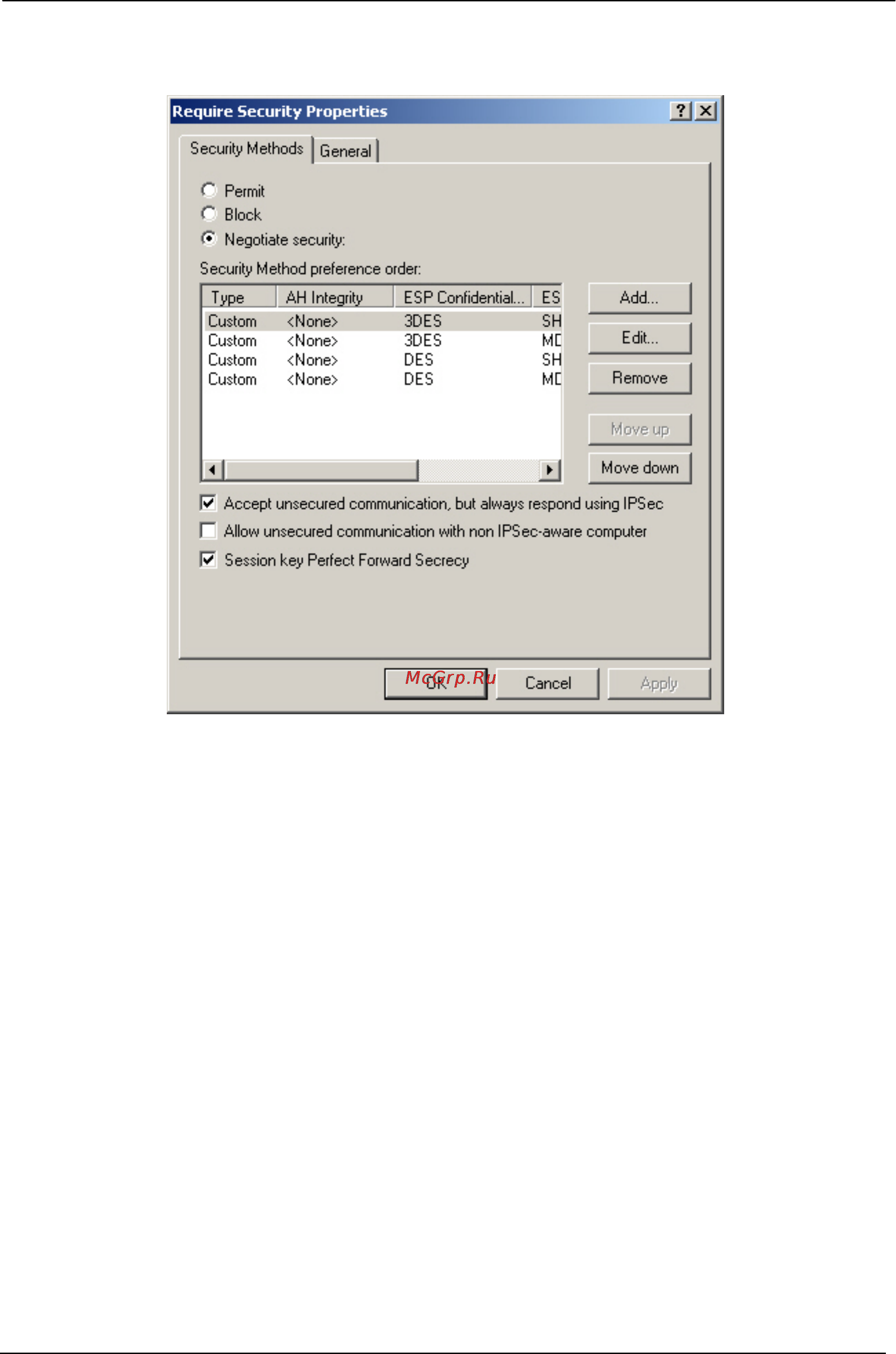

STEP 29 . In Require Security Properties, select Session Key Perfect Forward Secrecy.
Select Session Key Perfect Forward Secrecy
- 147 -
