MH-2001 Multi-Homing Security Gateway User’s Manual

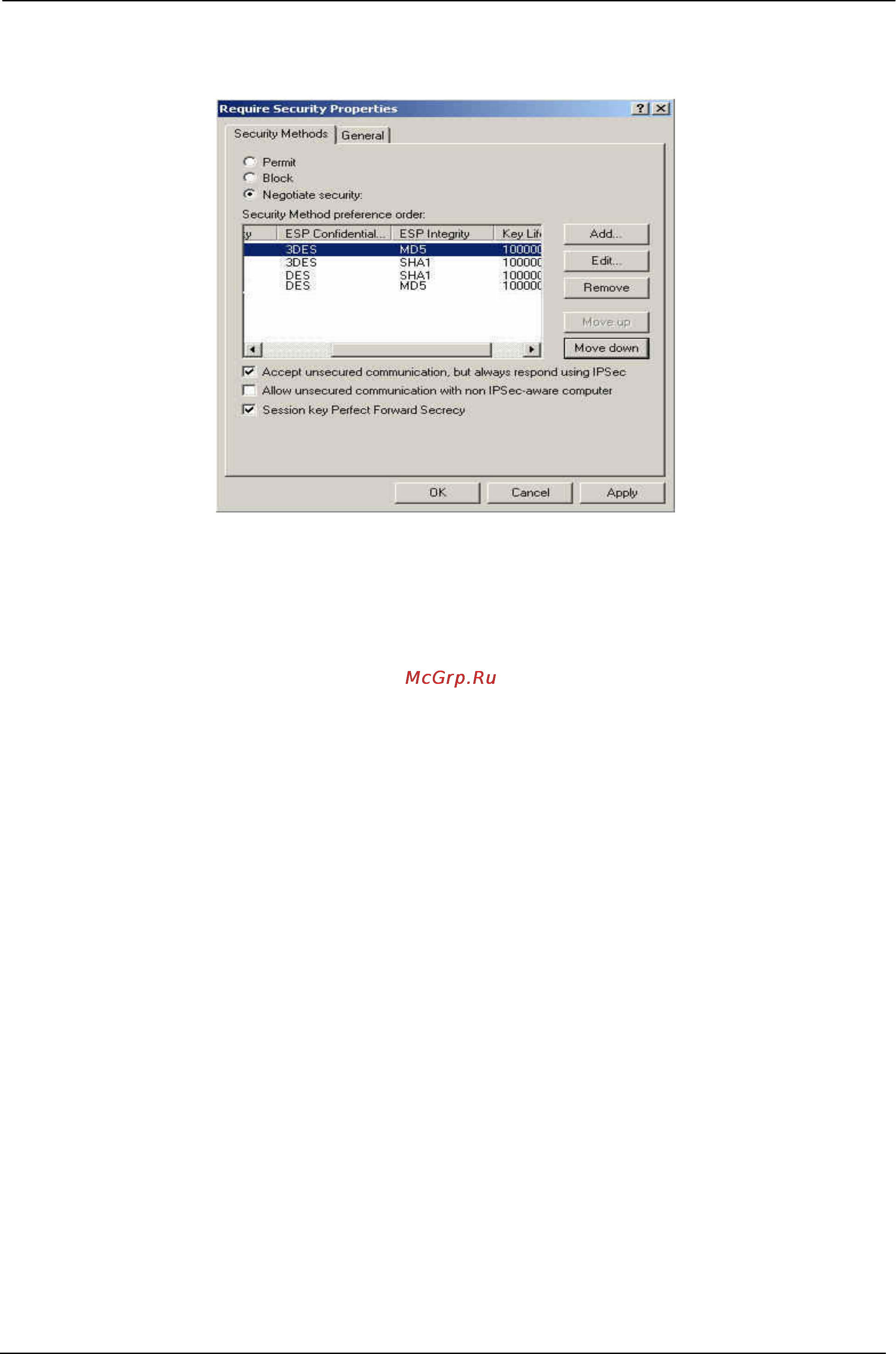

STEP 30 . Select Custom / None / 3DES / MD5 Security Method, click Edit.
Edit the Security Method
- 148 -
