MH-2001 Multi-Homing Security Gateway User’s Manual

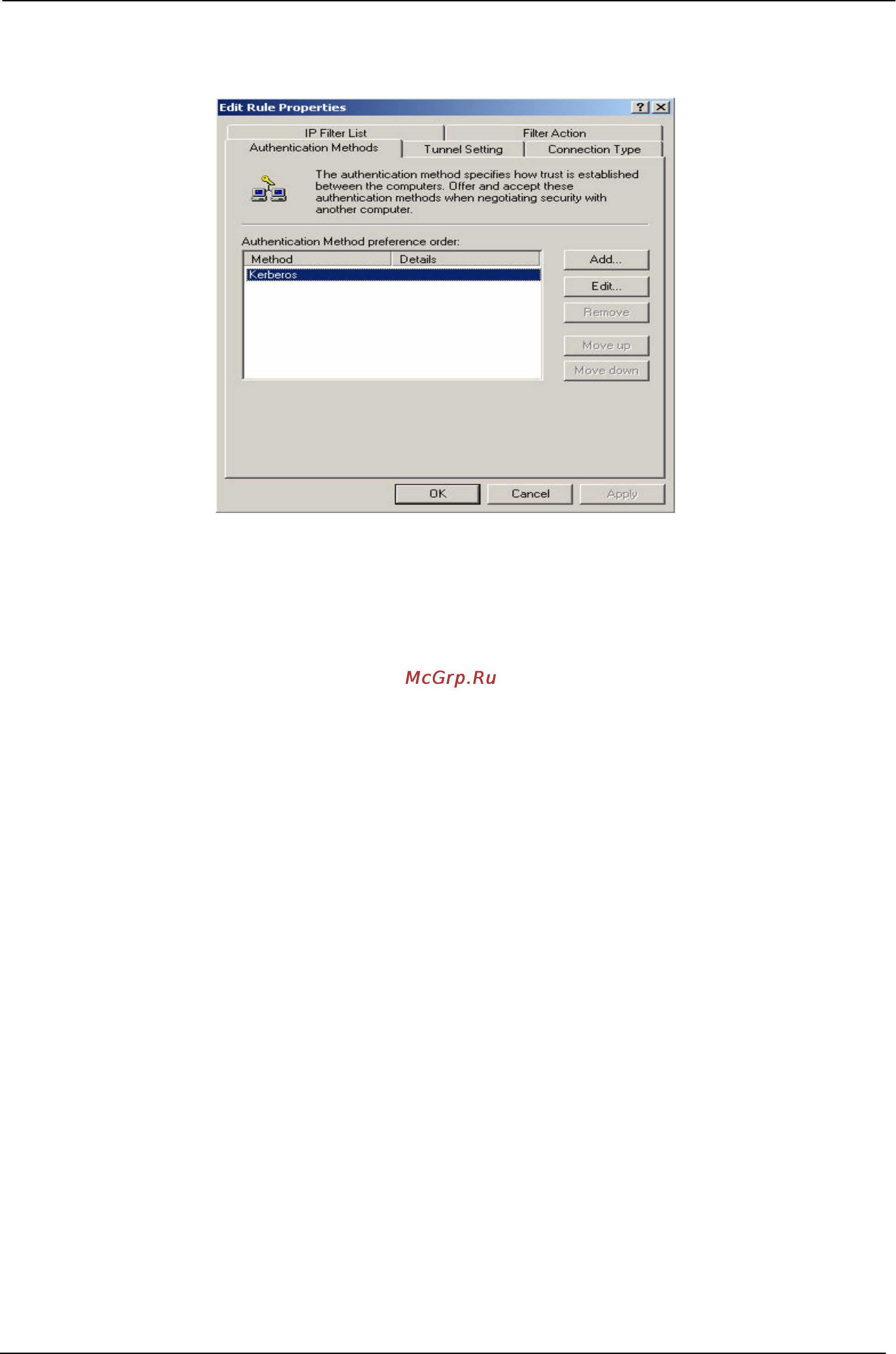

STEP 35 . In New Rule Properties Æ Authentication Methods, click Edit.
Authentication Methods setting
- 153 -
