MH-2001 Multi-Homing Security Gateway User’s Manual

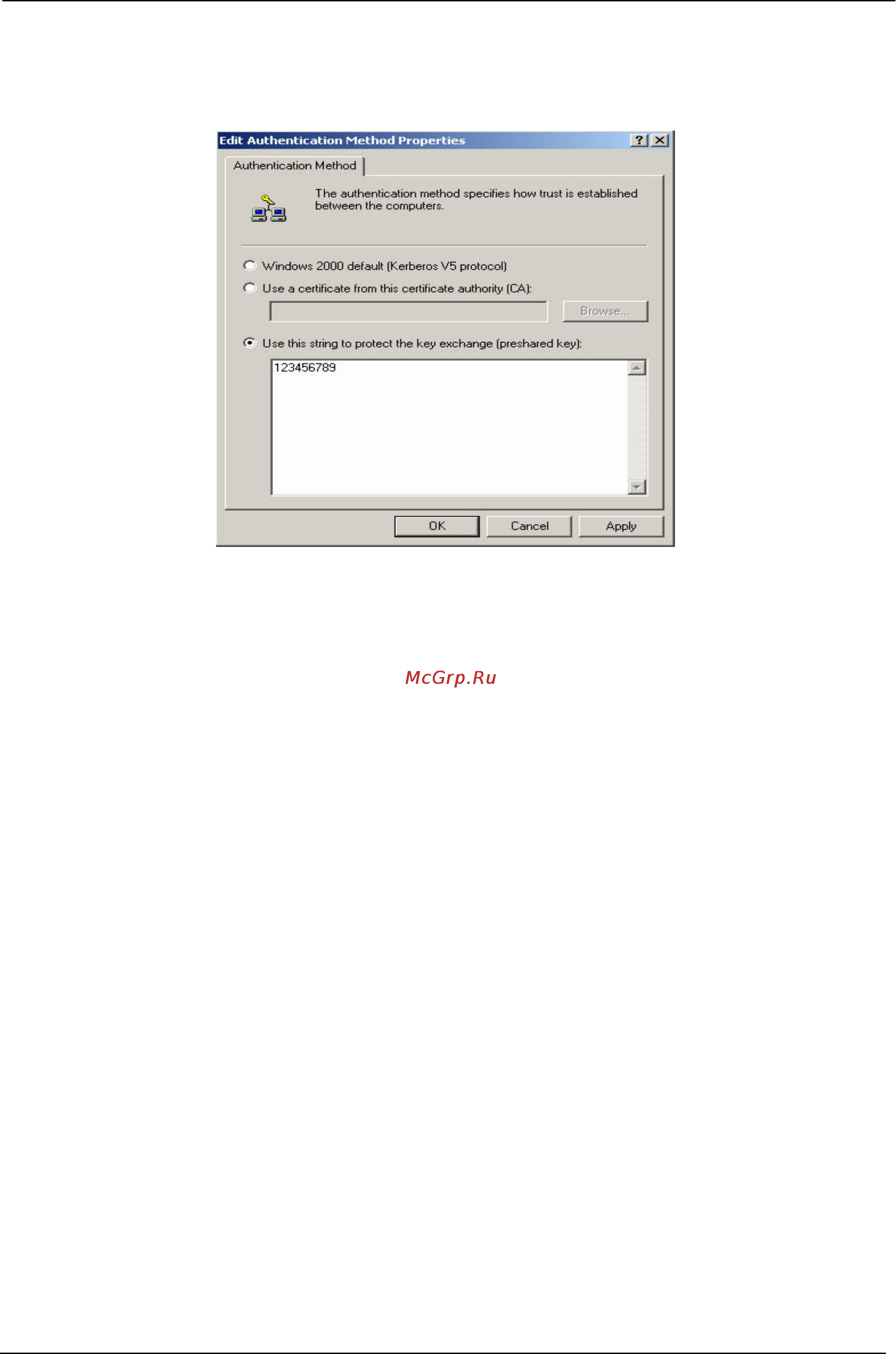

STEP 36 . Select Use this string to protect the key exchange (Preshared key), enter the Preshared Key,
123456789.
Set the VPN Preshared Key
- 154 -
