MH-2001 Multi-Homing Security Gateway User’s Manual

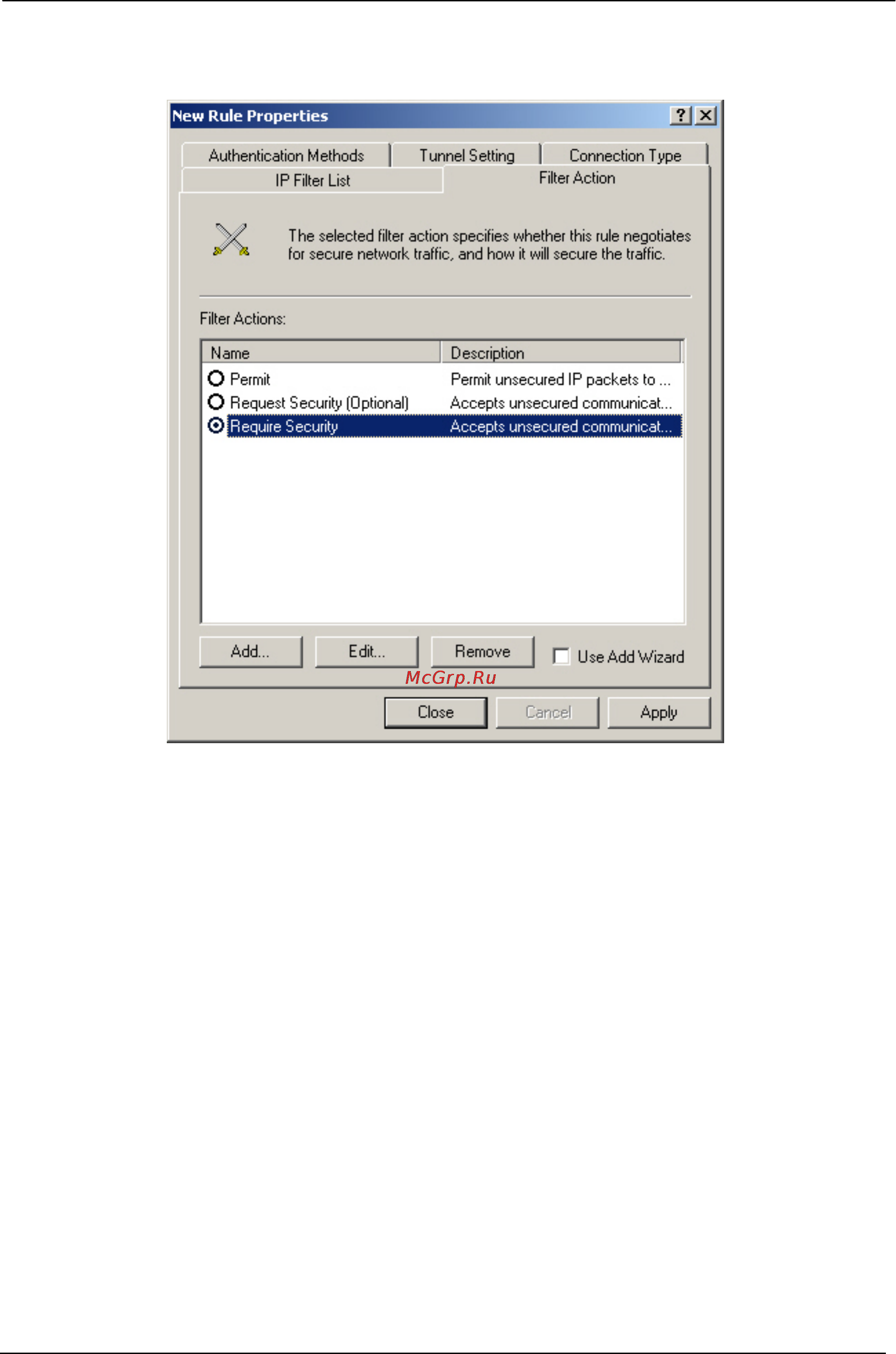

STEP 44 . In New Rule Properties Æ Filter Action, select Required Security, then click Edit.
Filter Action
- 162 -
