MH-2001 Multi-Homing Security Gateway User’s Manual

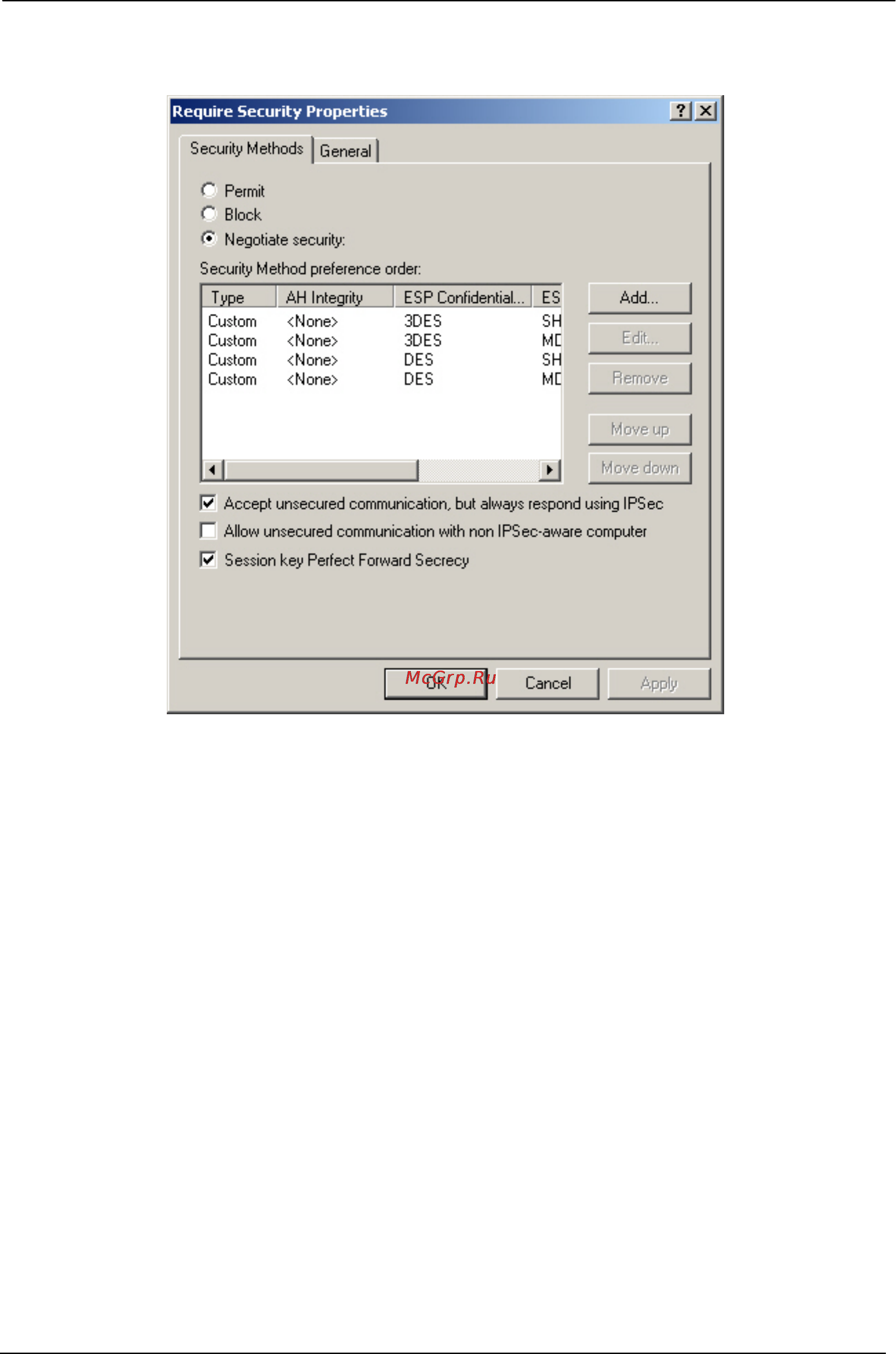

STEP 45 . In Require Security Properties, select Session key Perfect Froward Secrecy.
Select Session key Perfect Forward Secrecy
- 163 -
