MH-2001 Multi-Homing Security Gateway User’s Manual

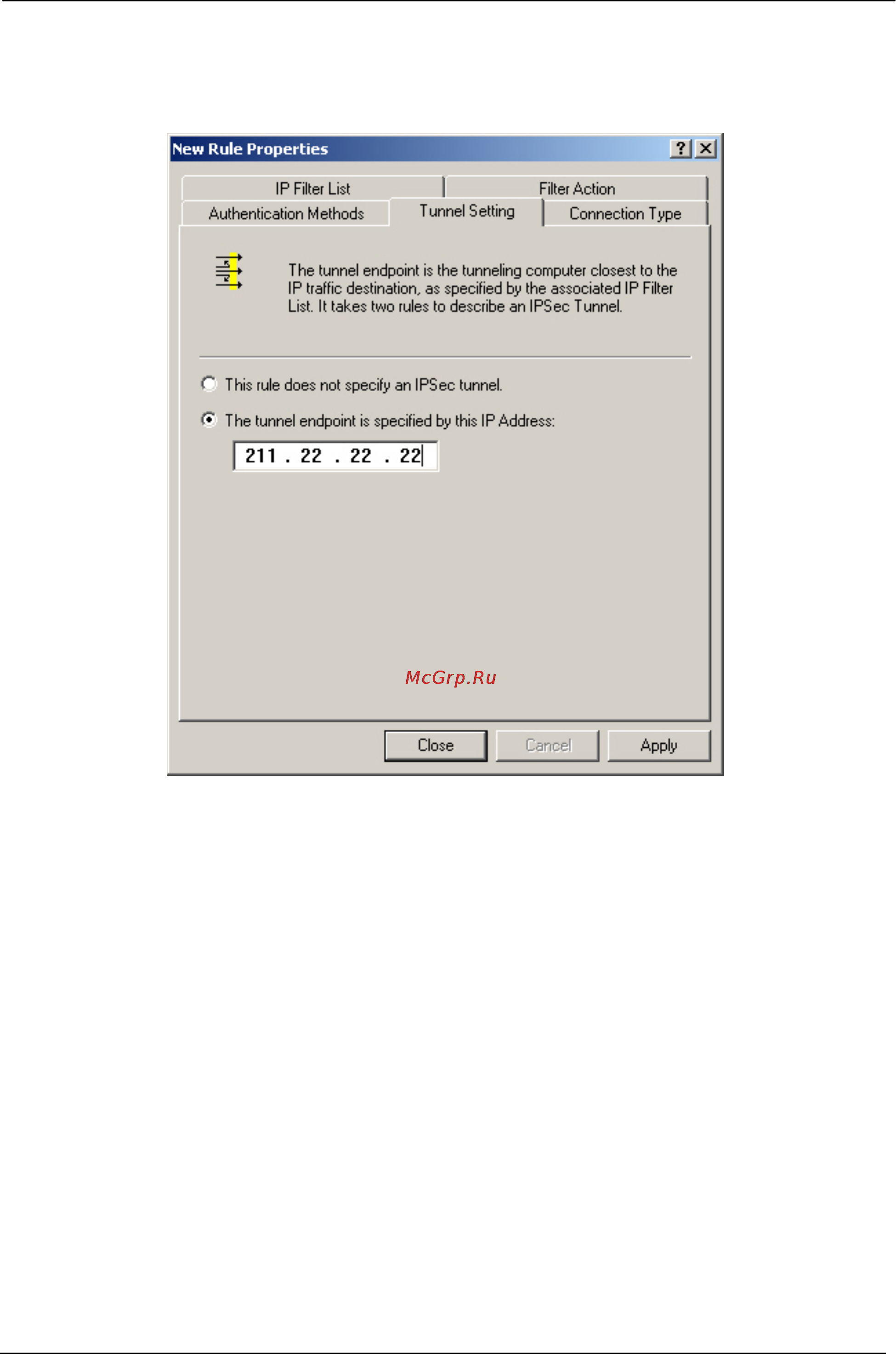

STEP 50 . In New Rule Properties Æ Tunnel Setting, select The tunnel endpoint is specified by this IP
Address. Enter B Company‘s WAN IP address 211.22.22.22.
Tunnel setting
- 168 -
