MH-2001 Multi-Homing Security Gateway User’s Manual

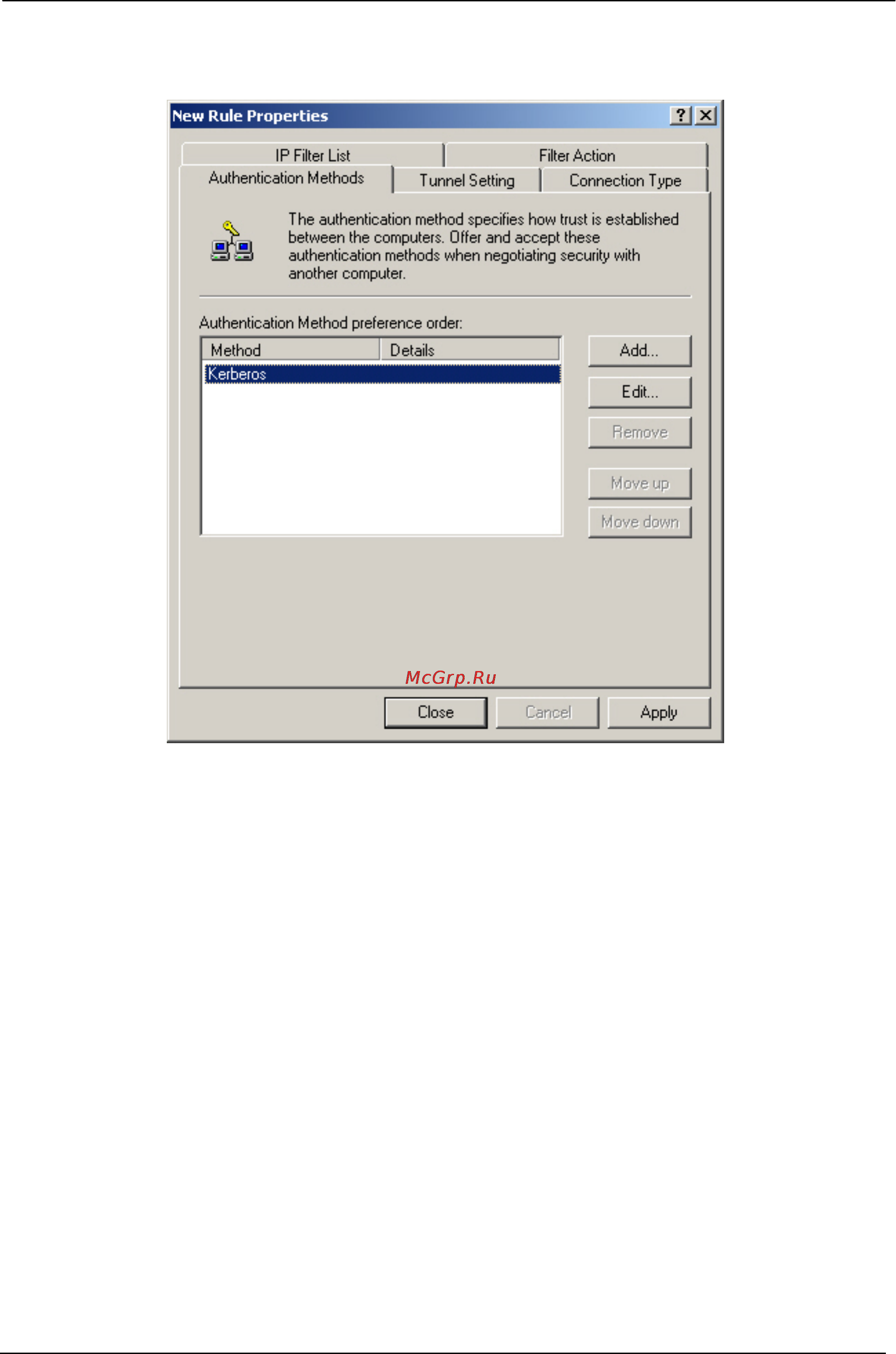

STEP 51 . In New Rule Properties Æ Authentication Methods, click Edit.
Authentication Methods
- 169 -
