MH-2001 Multi-Homing Security Gateway User’s Manual

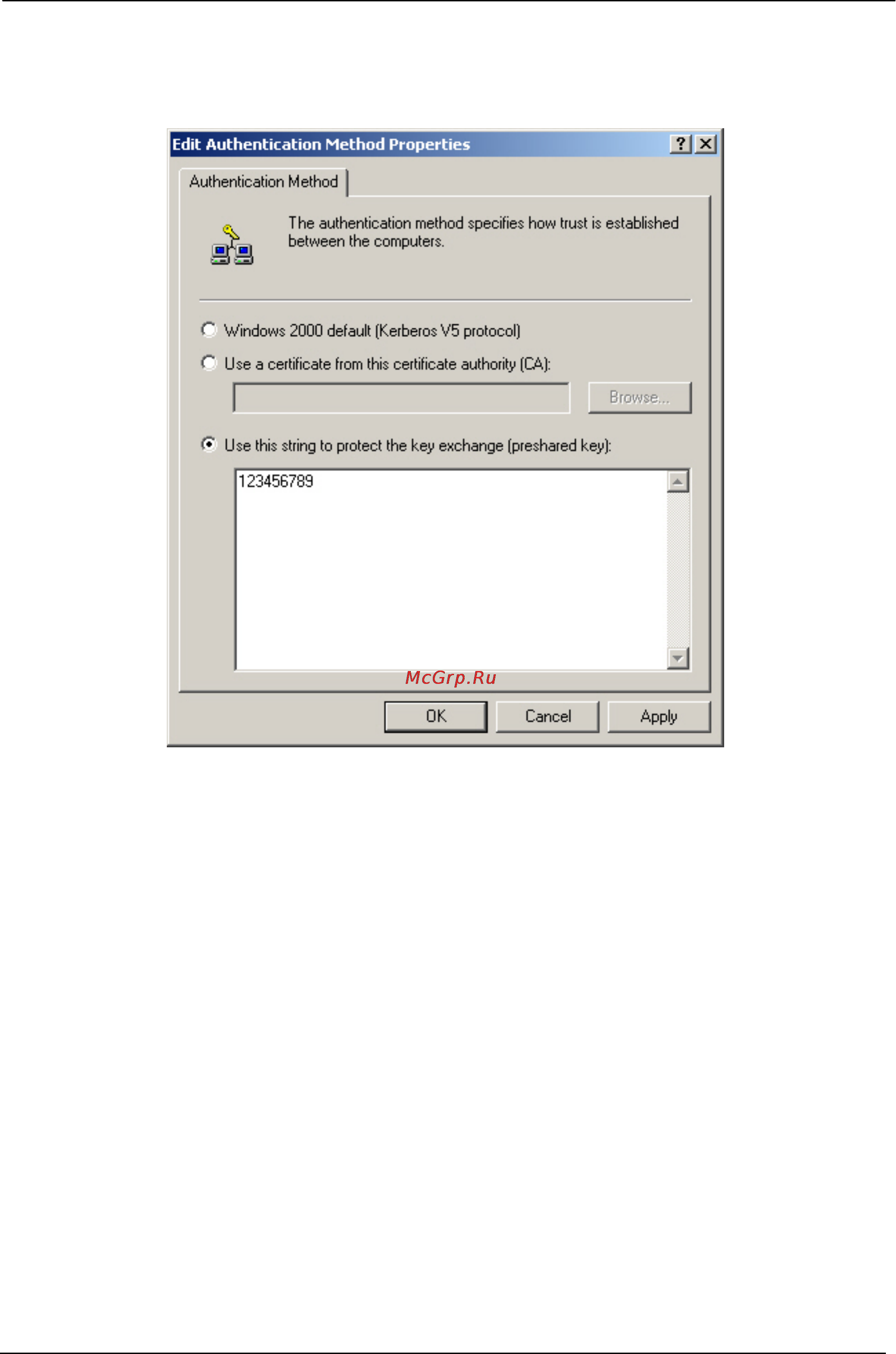

STEP 52 . Select Use this string to protect the key exchange (Preshared key). Enter the Preshared Key,
123456789.
VPN Preshared key setting
- 170 -
