MH-2001 Multi-Homing Security Gateway User’s Manual

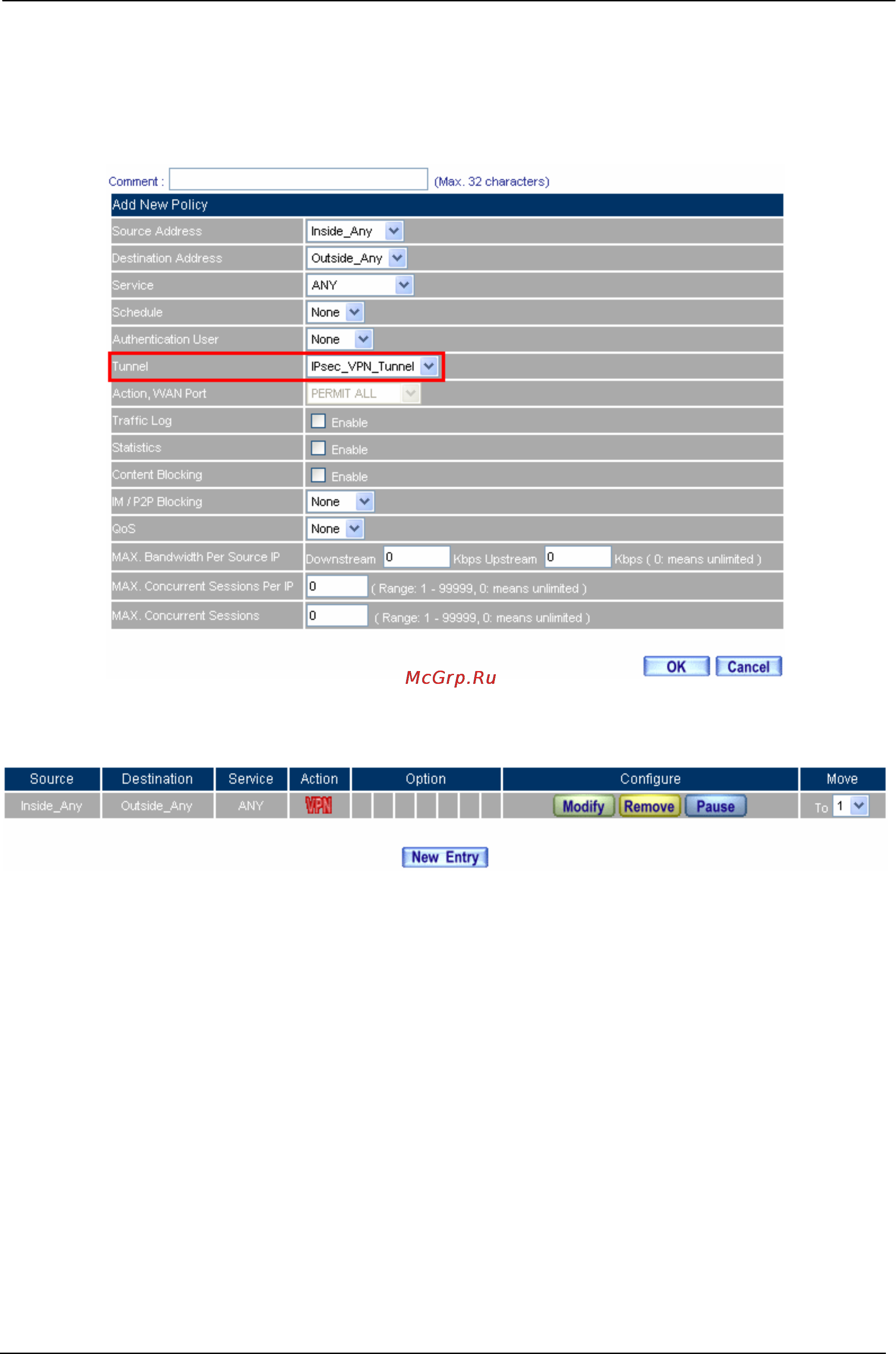

STEP 23 . In Policy ÆOutgoing , add the following settings：
Tunnel, select IPSec_VPN_Tunnel.
Click OK.
To set the outgoing policy included the VPN Tunnel
Complete to set the outgoing policy included the VPN Tunnel
- 206 -
