MH-2001 Multi-Homing Security Gateway User’s Manual

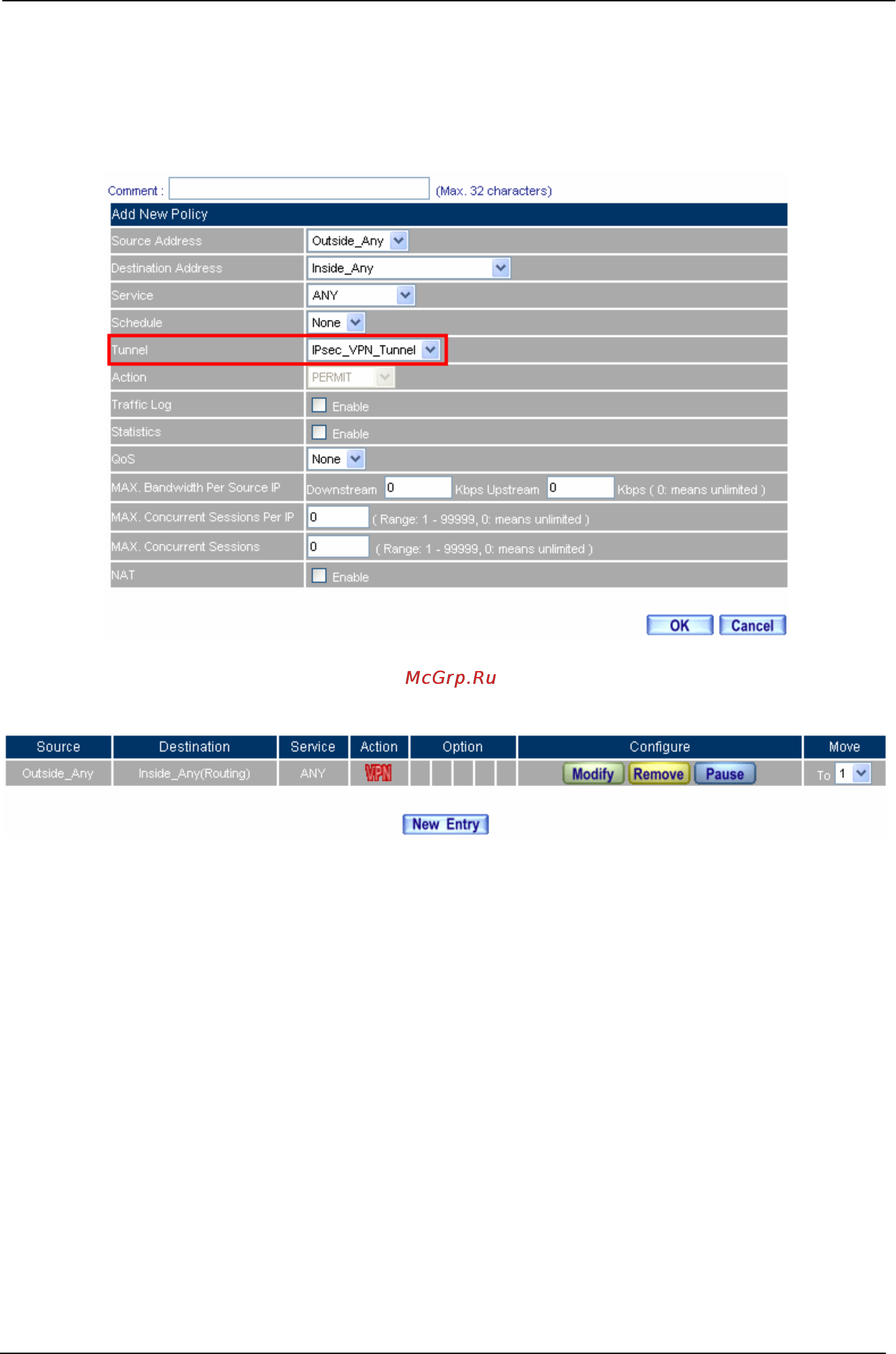

STEP 24 . In Policy Æ Incoming, add the following settings：
Tunnel, select IPSec_VPN_Tunnel.
Click OK.
To set the incoming policy included the VPN Tunnel
Complete to set the incoming policy included the VPN Tunnel
STEP 25 . Complete the IPSec VPN GRE/IPSec settings.
- 207 -
