MH-2001 Multi-Homing Security Gateway User’s Manual
- 245 -

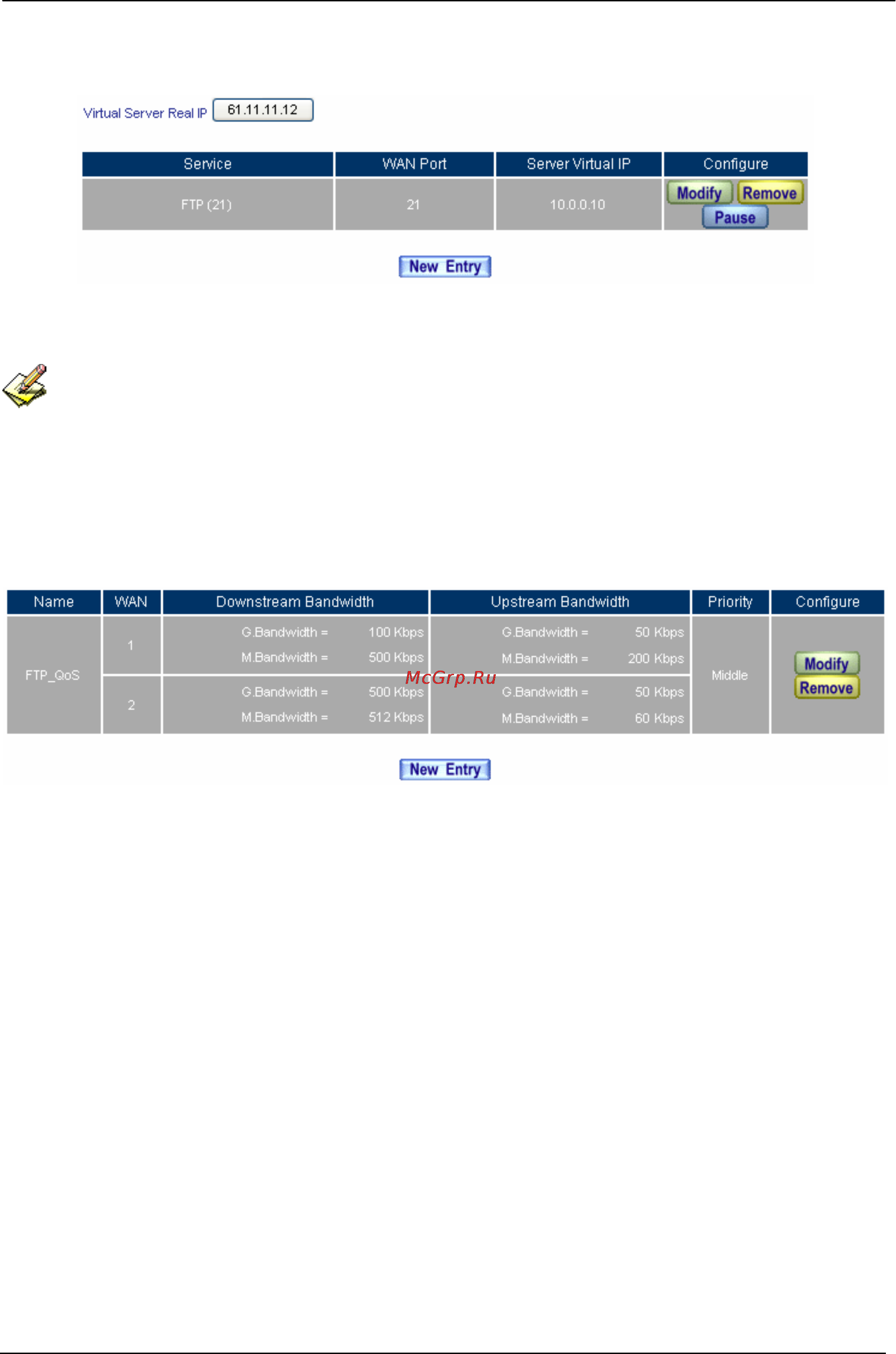

STEP 2﹒Enter the following setting in Virtual Server1 of Virtual Server function:
Setting up Virtual Server Corresponds to FTP Server
When using the function of Incoming or WAN to DMZ in Policy, strong suggests that cannot select
ANY in Service. It may be attacked by Hacker easily.
STEP 3﹒Enter the following in QoS:
QoS Setting
