MH-2001 Multi-Homing Security Gateway User’s Manual

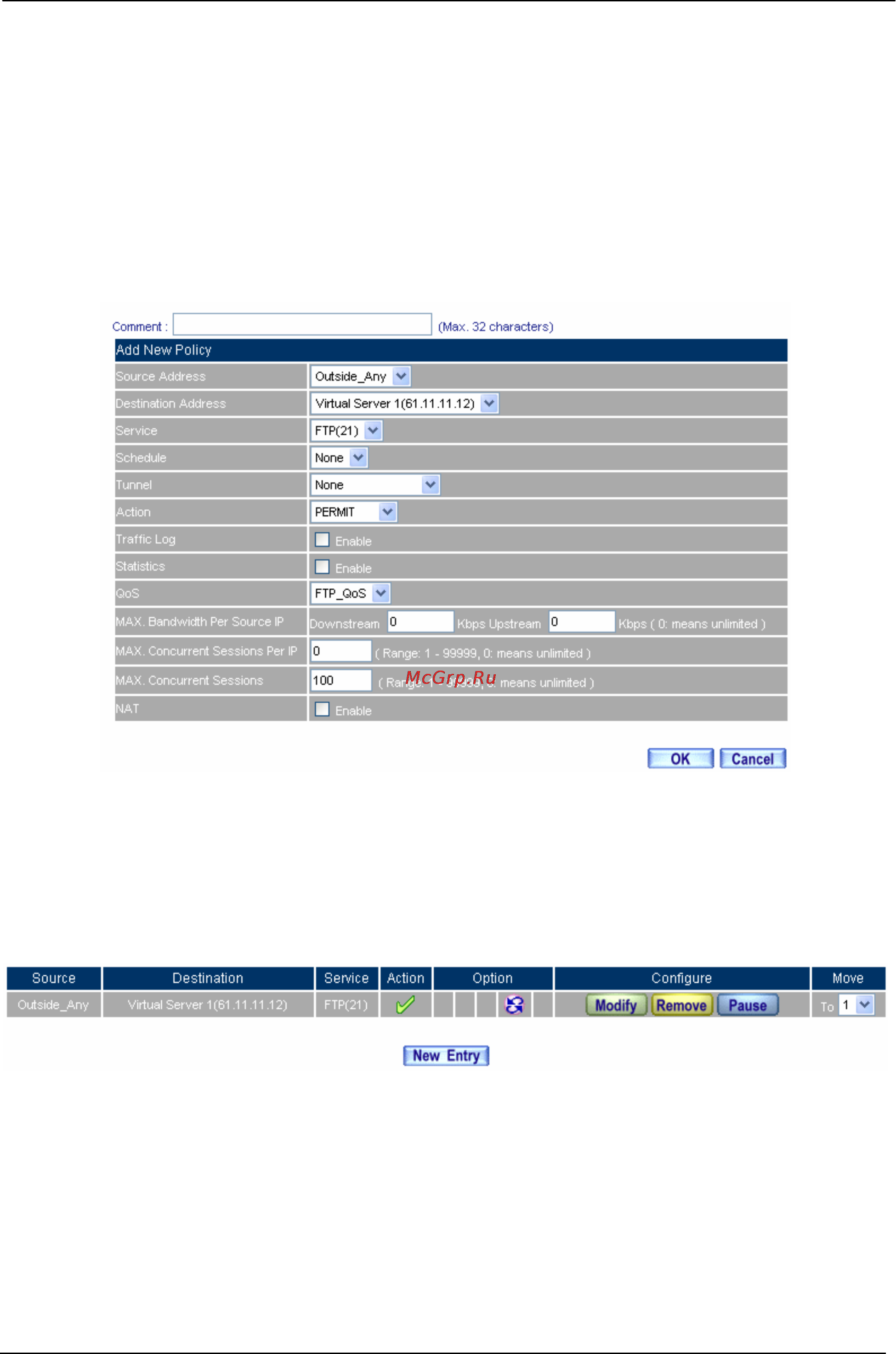

STEP 4﹒Enter the following in WAN to DMZ Policy:
Click New Entry
Destination Address: Select Virtual Server1 (61.11.11.12)
Service: Select FTP (21)
QoS: Select FTP_QoS
MAX. Concurrent Sessions: Enter 100
Click OK
Add New Policy
STEP 5﹒Complete the policy of restricting the external users to access to internal network server (which may
occupy the resource of network)
Complete the Policy Setting
- 246 -
