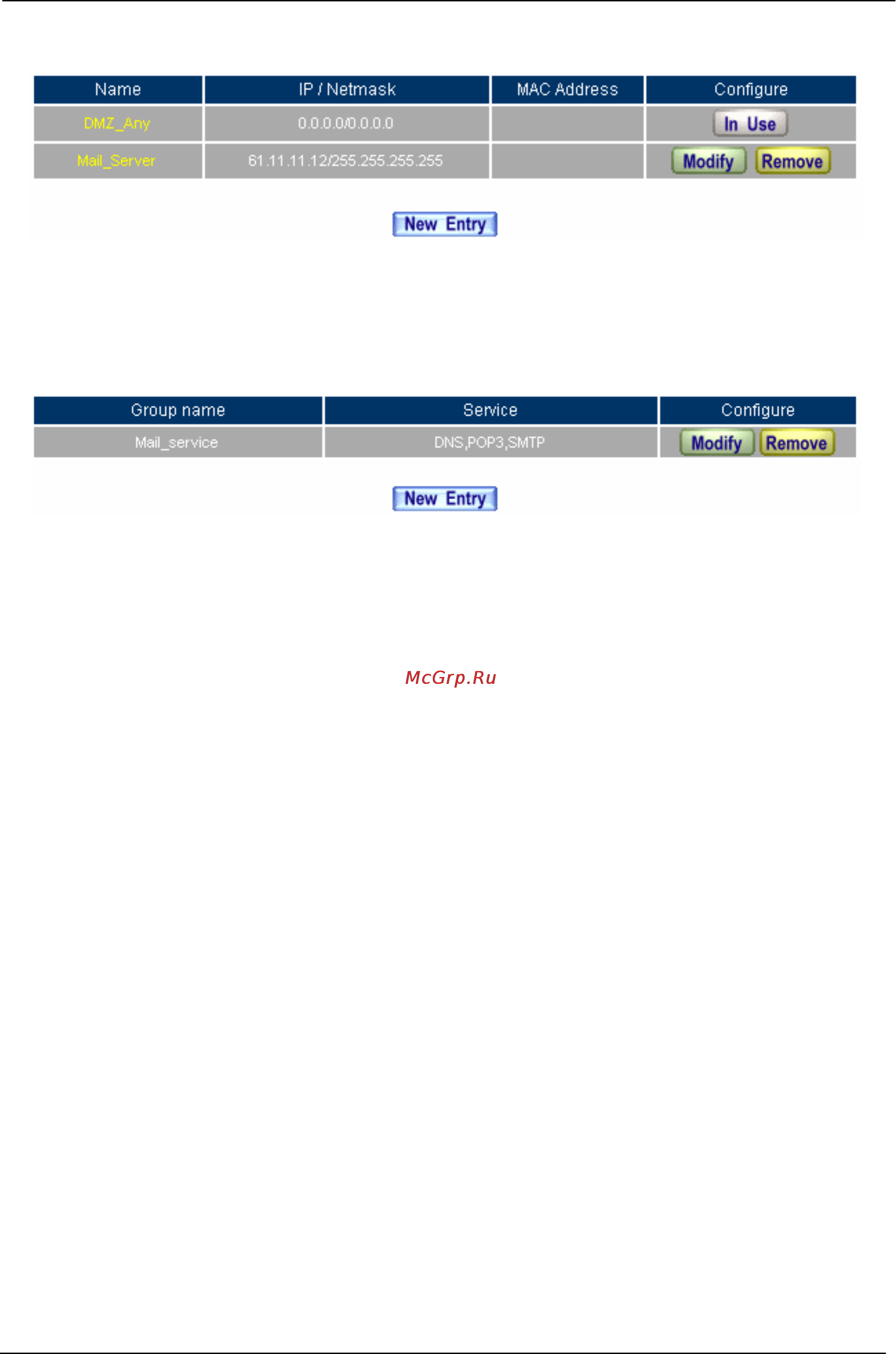

MH-2001 Multi-Homing Security Gateway User’s Manual
The Mail Server’s IP Address Corresponds to Name Setting in Address Book of Mail Server
STEP 3﹒Add the following setting in Group of Service function:
Setting up a Service Group that has POP3, SMTP, and DNS
- 248 -
