MH-2001 Multi-Homing Security Gateway User’s Manual
STEP 4﹒Enter the following setting in WAN to DMZ Policy:
Click New Entry
Destination Address: Select Mail_Server
Service: Select Mail_service
Click OK

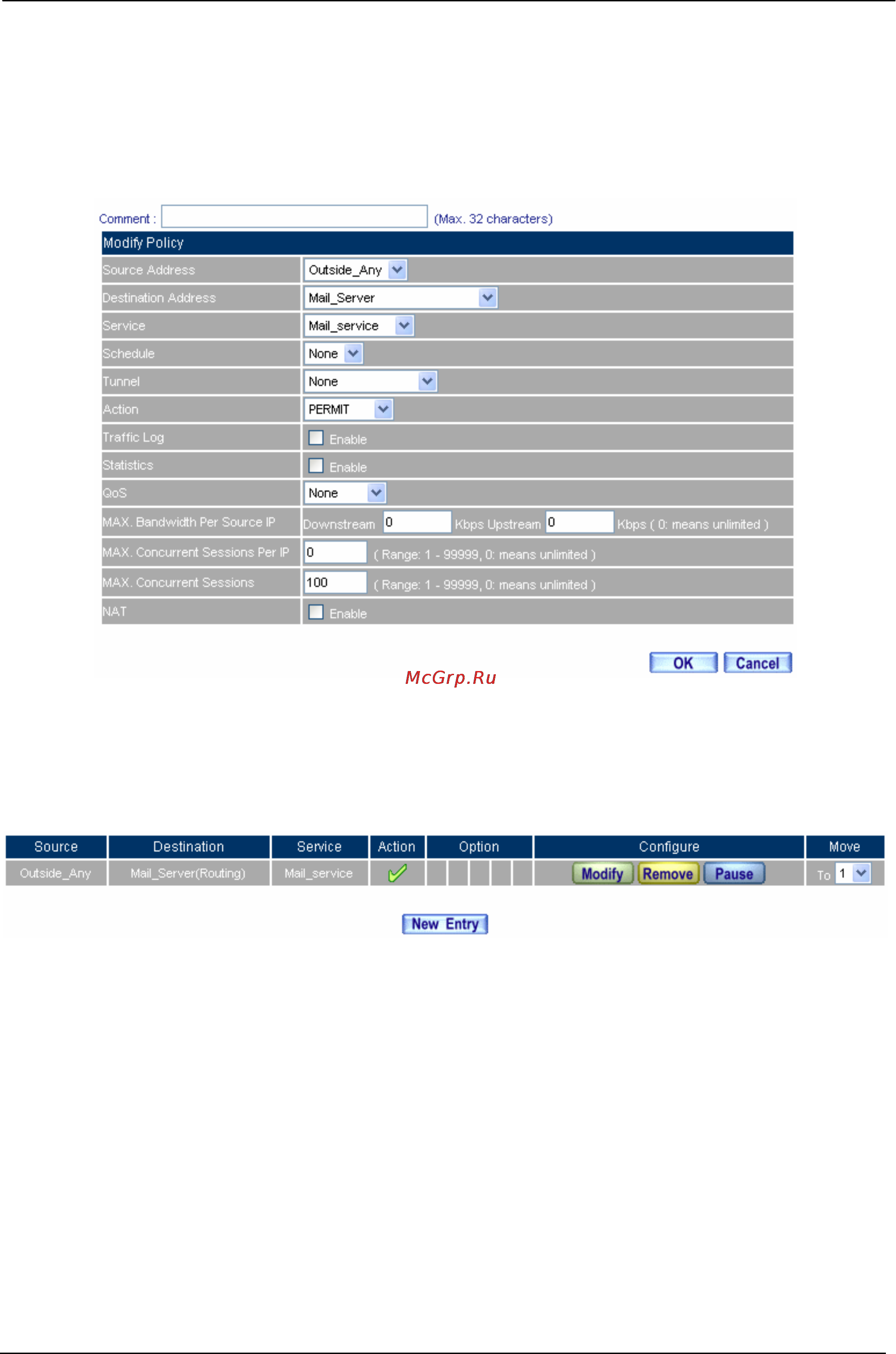

Setting a Policy to access Mail Service by WAN to DMZ
STEP 5﹒Complete the policy to access mail service by WAN to DMZ.
Complete the Policy to access Mail Service by WAN to DMZ
- 249 -
