MH-2001 Multi-Homing Security Gateway User’s Manual
STEP 6﹒Add the following setting in LAN to DMZ Policy:
Click New Entry
Destination Address: Select Mail_Server
Service: Select Mail_service
Click OK

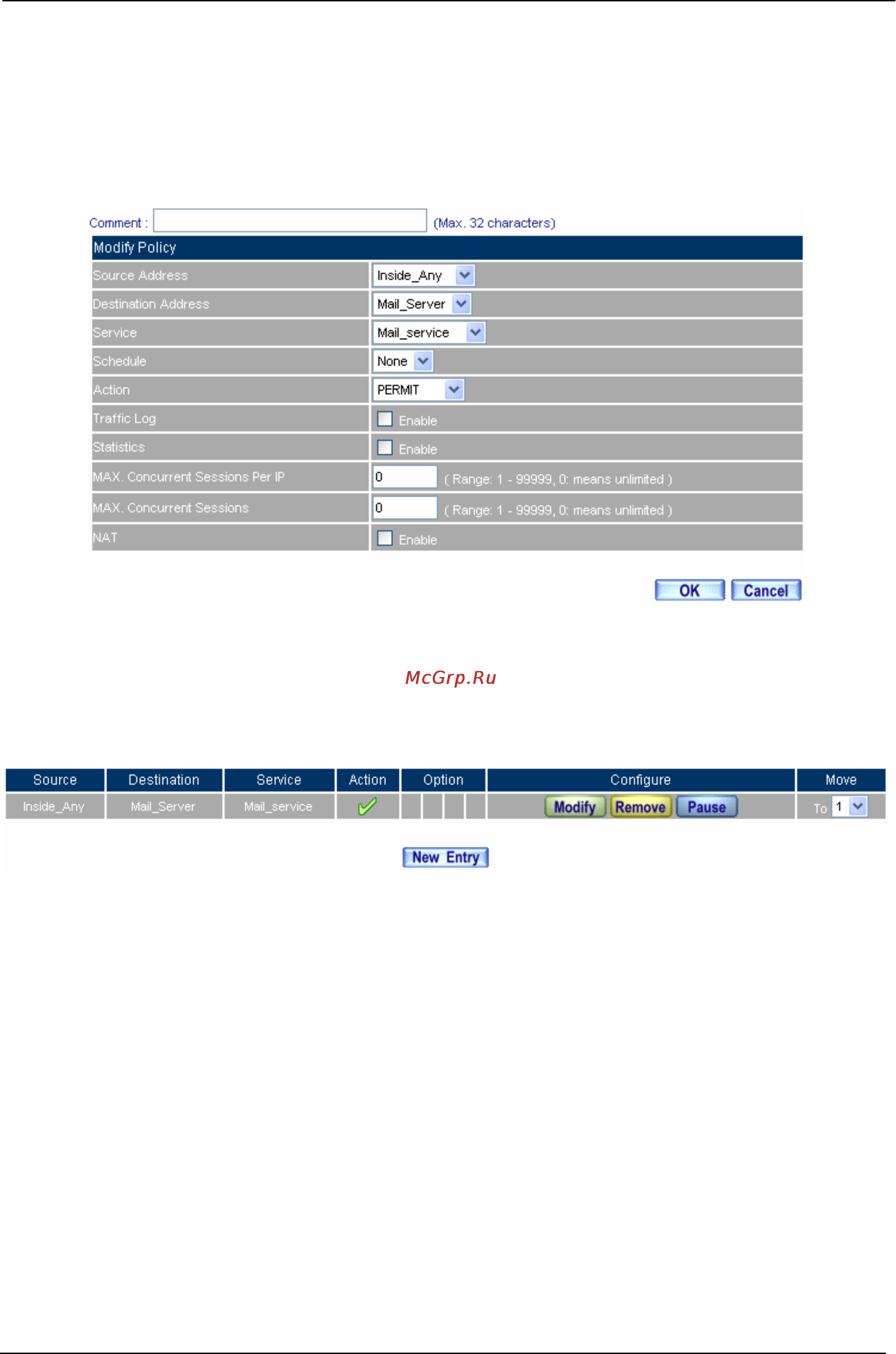

Setting a Policy to access Mail Service by LAN to DMZ
STEP 7﹒Complete the policy to access mail service by LAN to DMZ
Complete the Policy to access Mail Service by LAN to DMZ
