MH-2001 Multi-Homing Security Gateway User’s Manual
STEP 8﹒Add the following setting in DMZ to WAN Policy:
Click New Entry
Source Address: Select Mail_Server
Service: Select Mail_service
Click OK

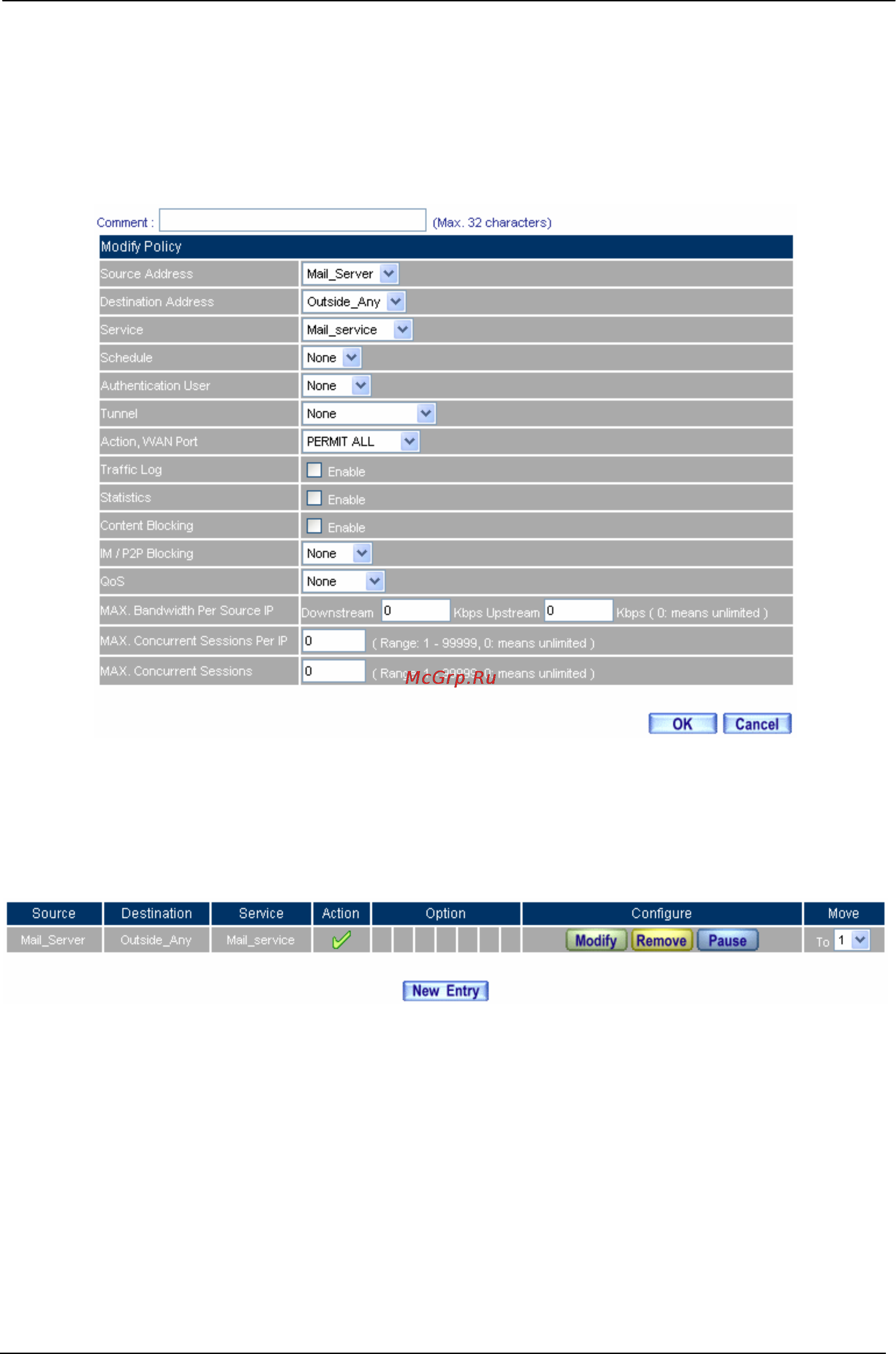

Setting the Policy of Mail Service by DMZ to WAN
STEP 9﹒Complete the policy access to mail service by DMZ to WAN.
Complete the Policy access to Mail Service by DMZ to WAN
- 251 -
