MH-2001 Multi-Homing Security Gateway User’s Manual

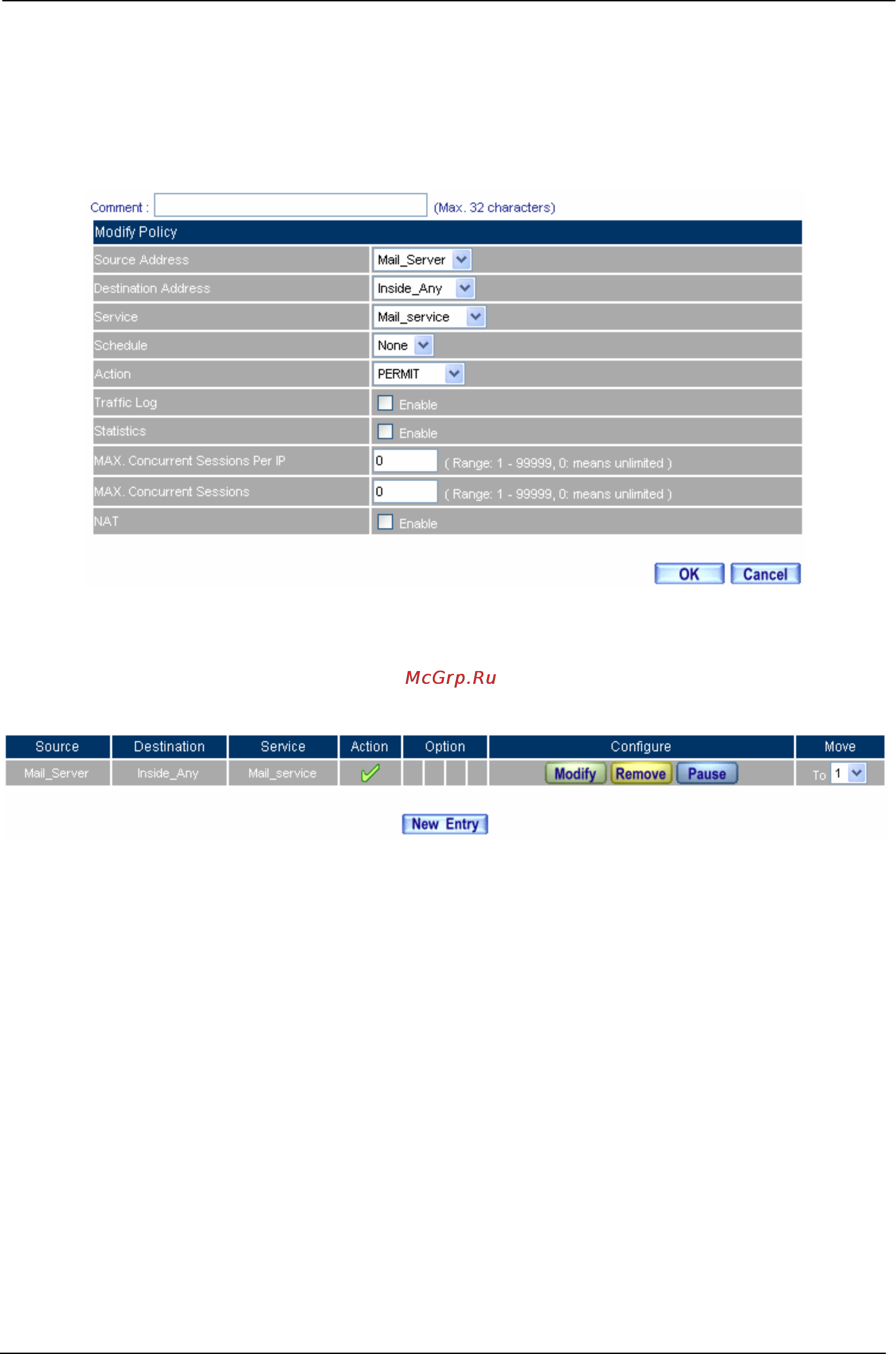

STEP 10﹒Add the following setting in DMZ to LAN Policy:
Click New Entry
Source Address: Select Mail_Server
Service: Select Mail_service
Click OK
Setting the Policy of Mail Service by DMZ to LAN
STEP 11﹒Complete the policy access to mail service by DMZ to LAN.
Complete the Policy access to Mail Service by DMZ to LAN
- 252 -
