MH-2001 Multi-Homing Security Gateway User’s Manual
STEP 2 . Enter Inbound in Accounting Report and select Top Sites to inquire the statistics website of Send
/ Receive packets, Downstream / Upstream, First packet/Last packet / Duration and the service from
the WAN user to pass the MH-2001.
TOP：Select the data you want to view. It presents 10 pages in one page.
Pull-down menu selection
Destination IP：The IP address used by WAN users who uses MH-2001.
Downstream：The percentage of Downstream and the value of each WAN user who uses MH-2001
to LAN service server.
Upstream：The percentage of Upstream and the value of each LAN service server who uses
MH-2001 to WAN users.
First Packet：When the first packet is sent from WAN users to LAN service server, the sent time will
be recorded by the MH-2001.
Last Packet：When the last packet is sent from LAN service server to WAN users, the sent time will
be recorded by the MH-2001.
Duration：The period of time starts from the first packet to the last packet to be recorded.
Total Traffic：The MH-2001 will record the sum of time and show the percentage of each WAN
user’s upstream / downstream to LAN service server.
Reset Counter Button：Click the Reset Counter button to refresh the Accounting Report.

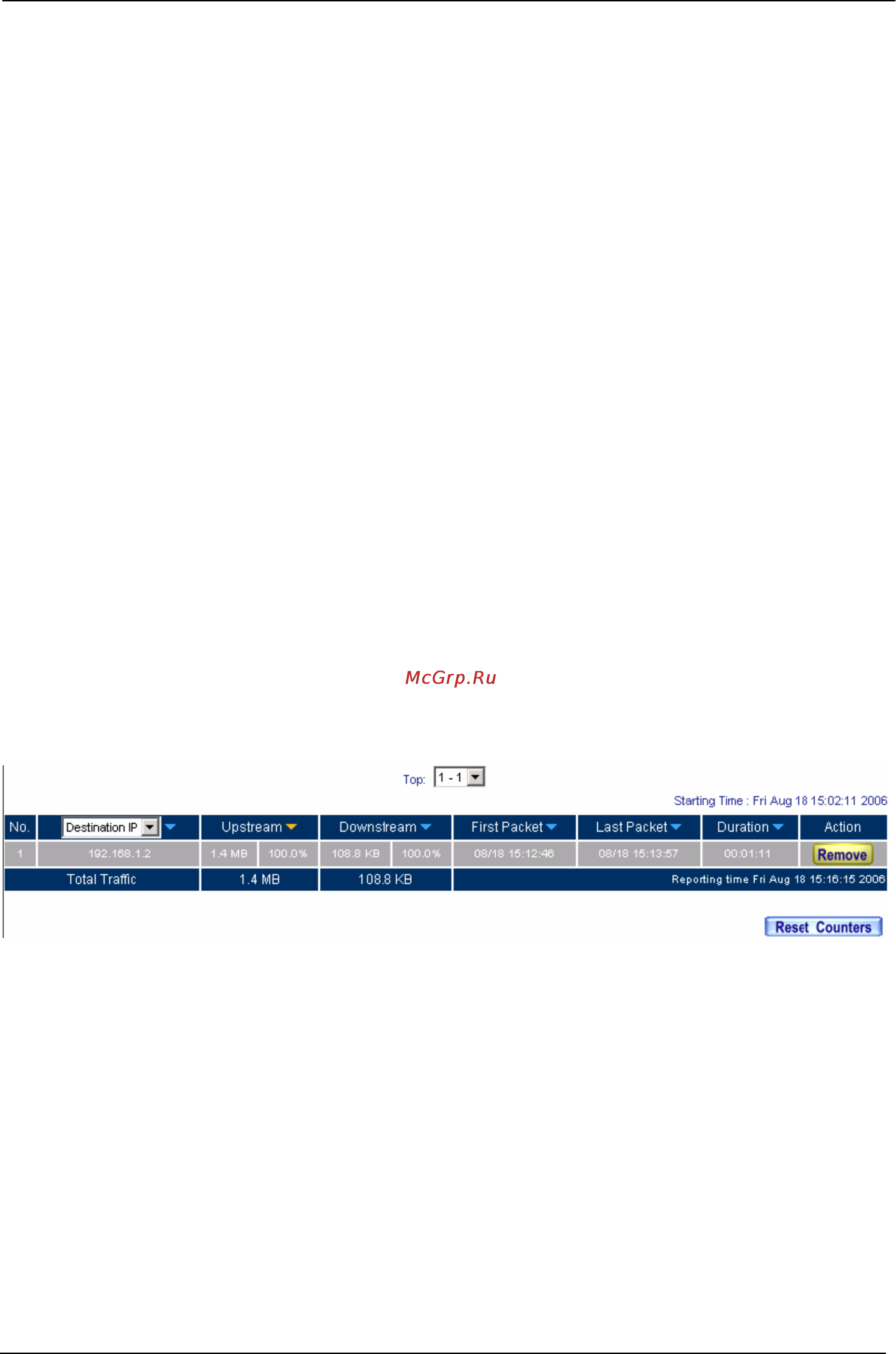

Inbound Destination IP Statistics Report
- 278 -
