MH-2001 Multi-Homing Security Gateway User’s Manual
STEP 3 . Enter Inbound in Accounting Report and select Top Services to inquire the statistics website of
Send/Receive packets, Downstream/Upstream, First packet/Last packet/Duration and the service
from the WAN Server to pass the MH-2001.
TOP：Select the data you want to view. It presents 10 results in one page.
：According to the downstream / upstream report of the selected TOP numbering to draw the
Protocol Distribution chart.
Pull-down menu selection
Service：The report of Communication Service when WAN users use the MH-2001 to connect to
LAN service server.
Downstream：The percentage of downstream and the value of each WAN user who uses MH-2001
to LAN service server.
Upstream：The percentage of upstream and the value of each LAN service server who uses
MH-2001 to WAN user.
First Packet：When the first packet is sent to the LAN Service Server, the sent time will be recorded
by the MH-2001.
Last Packet：When the last packet is sent from the LAN Service Server, the sent time will be
recorded by the MH-2001.
Duration：The period of time starts from the first packet to the last packet to be recorded.
Total Traffic：The MH-2001 will record the sum of time and show the percentage of each
Communication Service’s upstream / downstream to LAN service server.
Reset Counter：Click the Reset Counter button to refresh the Accounting Report.

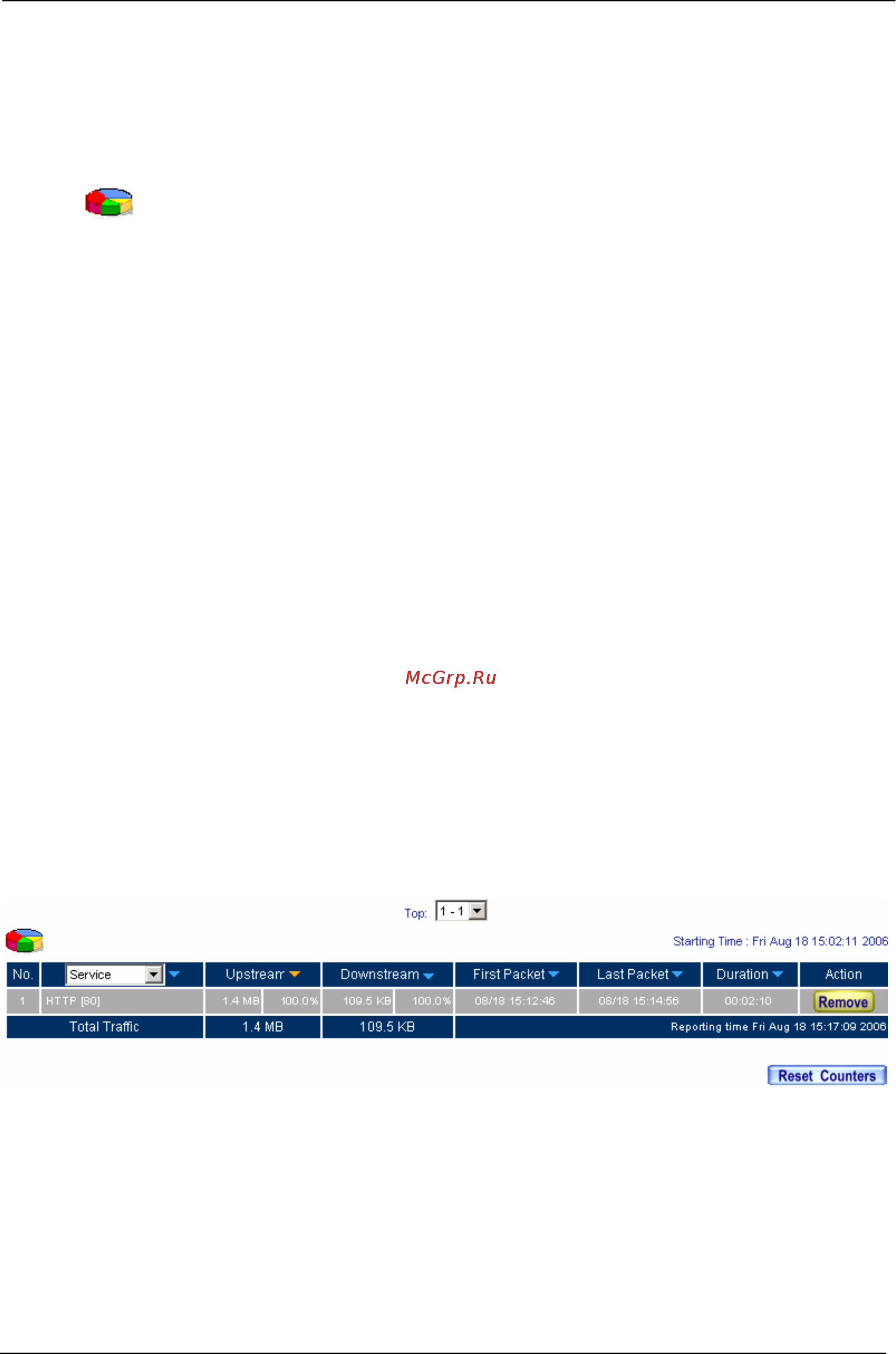

Inbound Services Statistics Report
- 279 -
