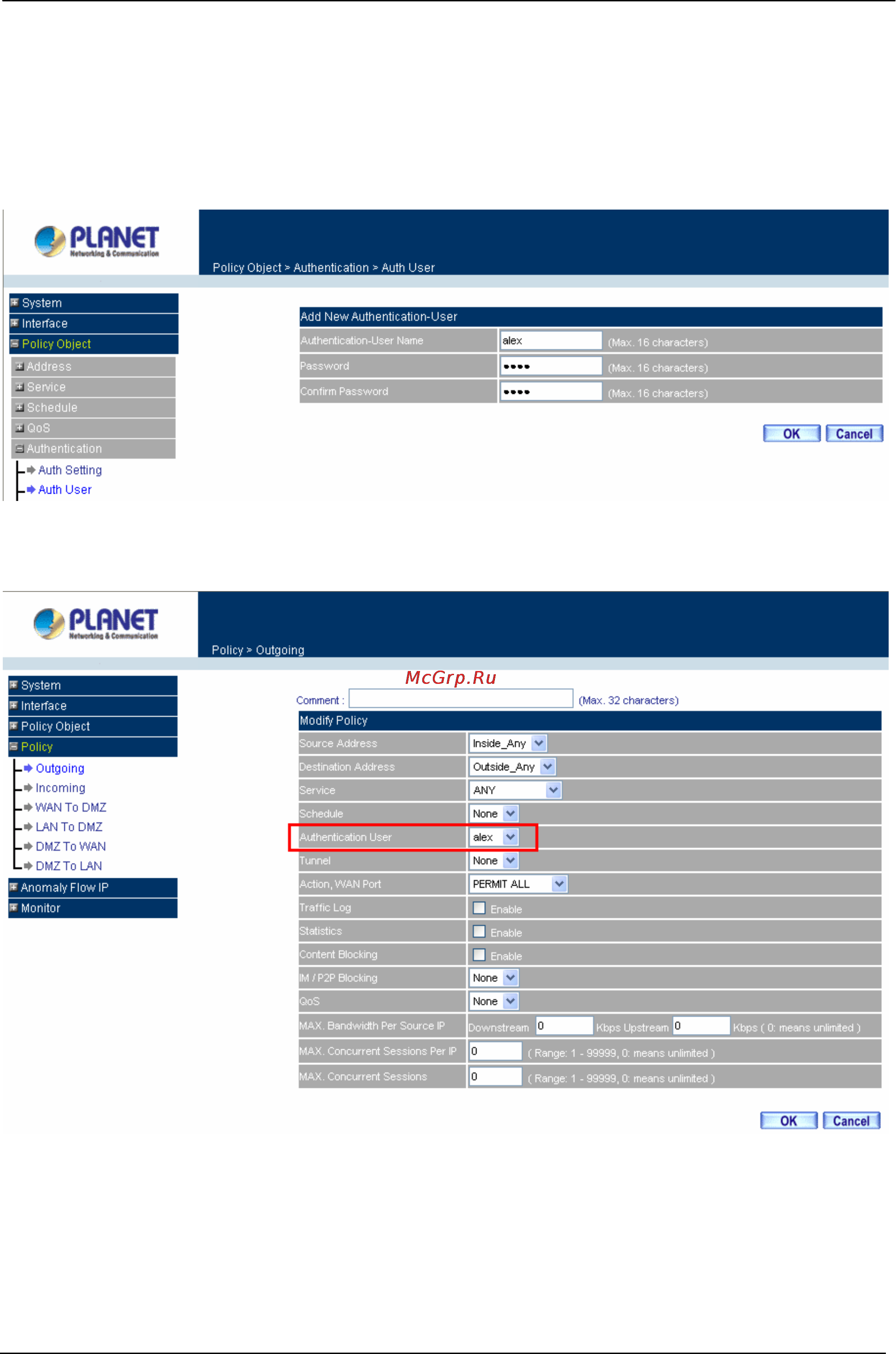

MH-2001 Multi-Homing Security Gateway User’s Manual
Auth-User Name: enter the username of new Authentication.
Password: enter a password for the new Authentication.
Confirm Password: enter the password again.
Step 3. Click OK to add the user or click Cancel to cancel the setting
Step 4. In the form of controlling the [Outgoing] Policy, enable the Authentication-User Function.
- 65 -
