MH-2001 Multi-Homing Security Gateway User’s Manual

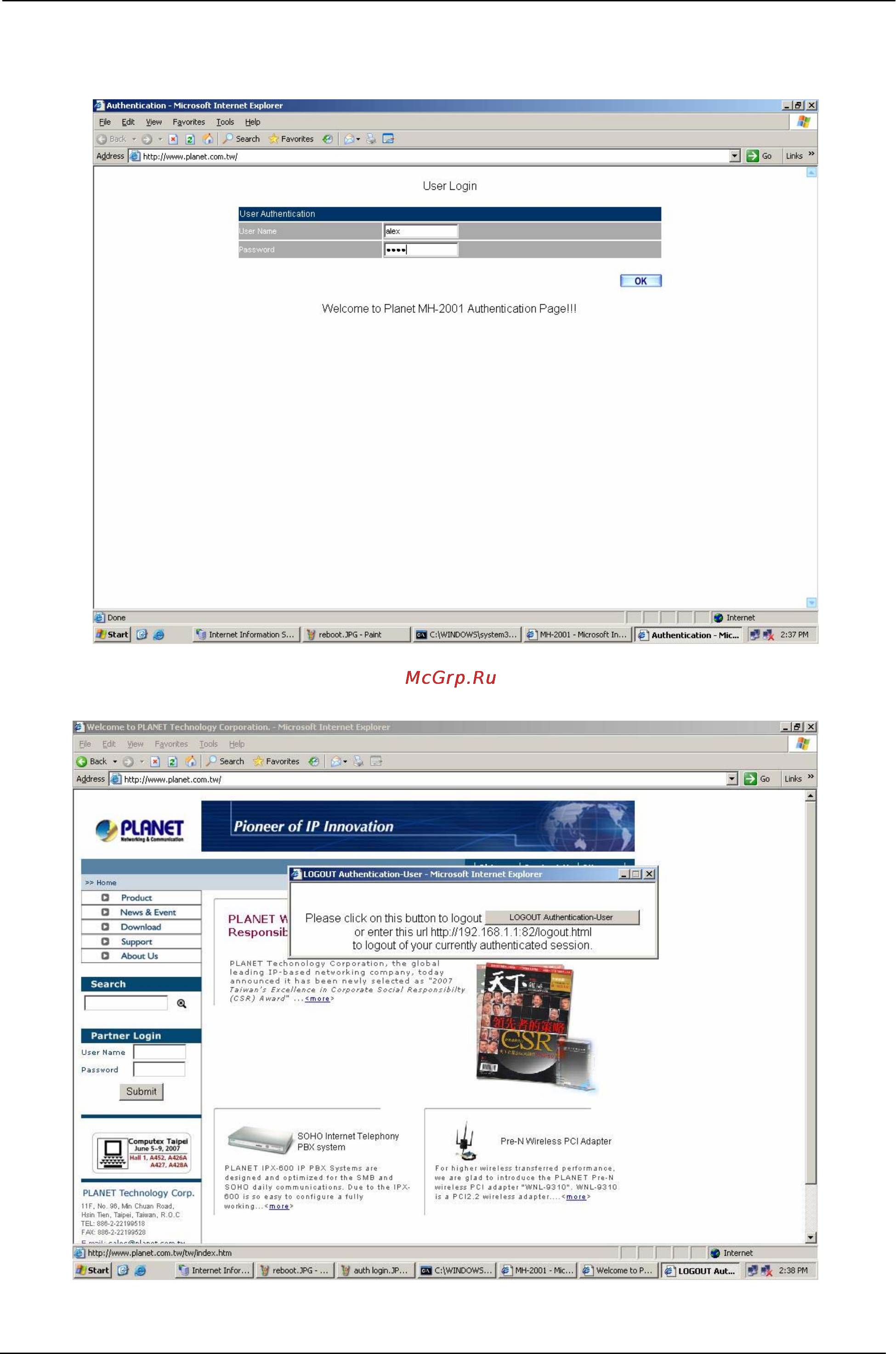

Step 5. When the user connect to external network by Authentication, the following page will be displayed.
Enter the User Name and Password for authentication.
Step 6. Authentication success, it will pop-up a window that you can logout and you can access to internet.
- 66 -
