MH-2001 Multi-Homing Security Gateway User’s Manual

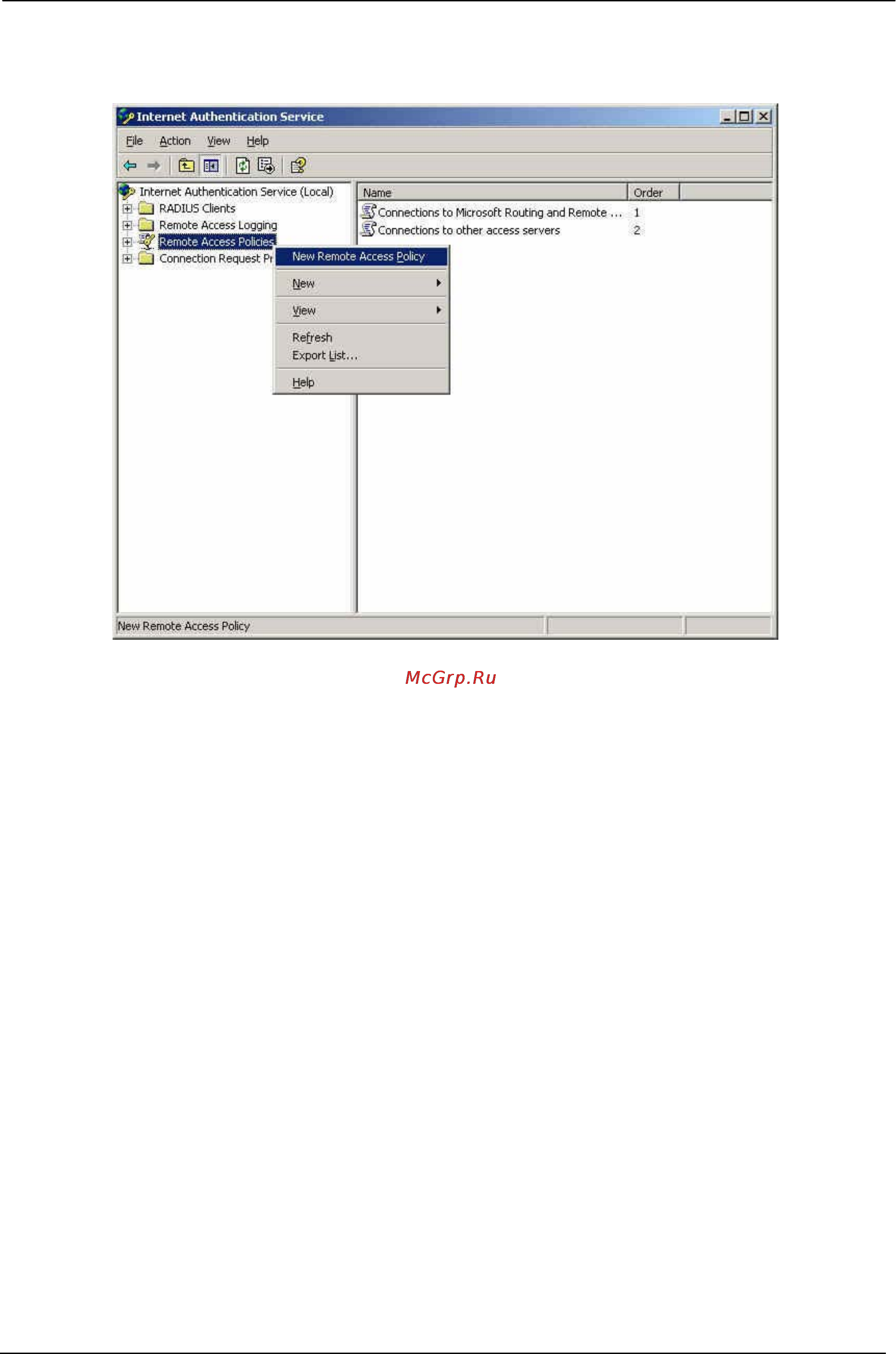

STEP 8 . Right click on Remote Access PoliciesÆ New Remote Access Policy.
Add new romote access policies
- 76 -
