MH-2001 Multi-Homing Security Gateway User’s Manual

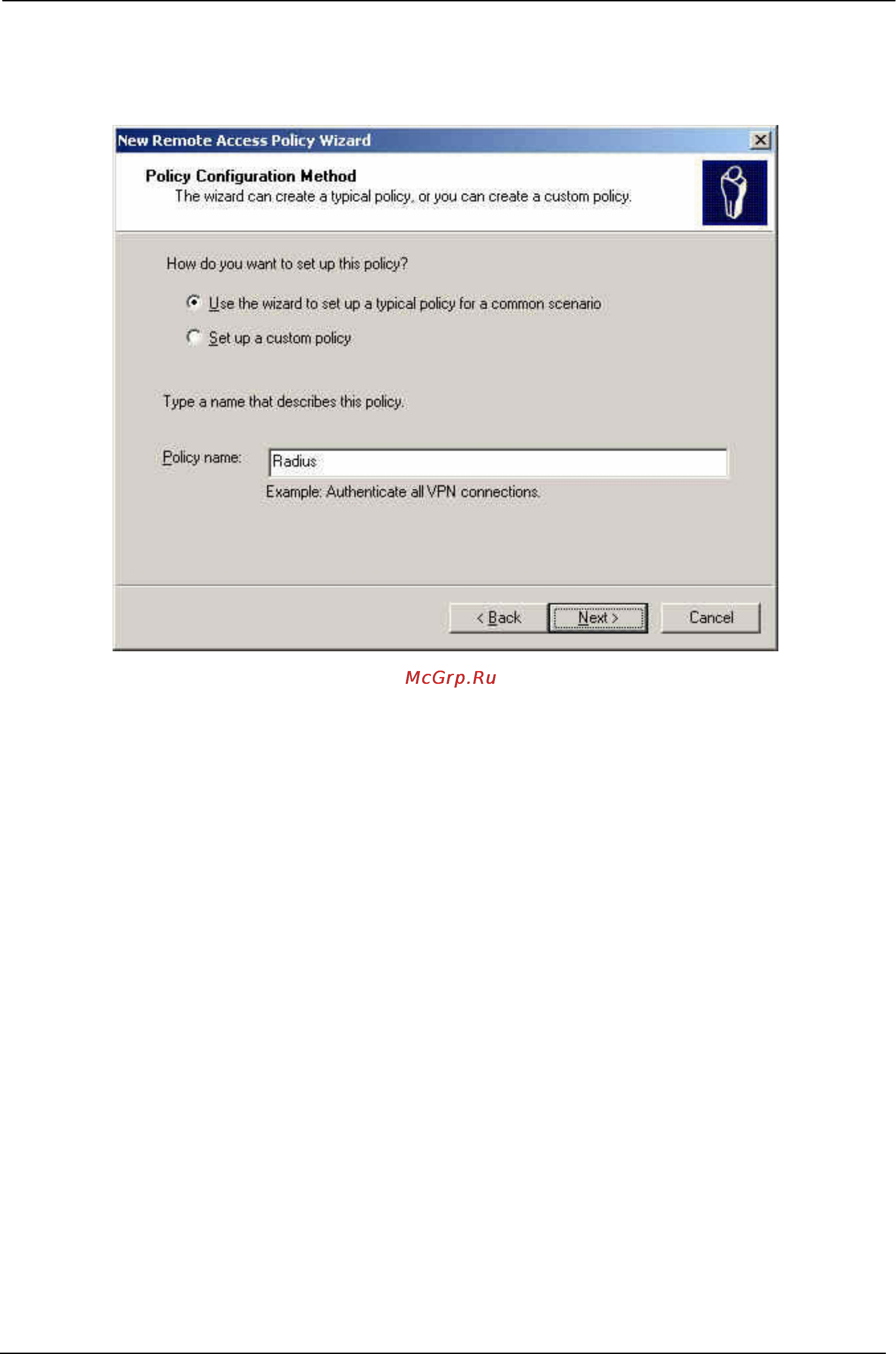

STEP 9 . Select Use the wizard to set up a typical policy for a common scenario, and enter the Policy
name.
Add new romote access policies and policy name
- 77 -
