MH-2001 Multi-Homing Security Gateway User’s Manual

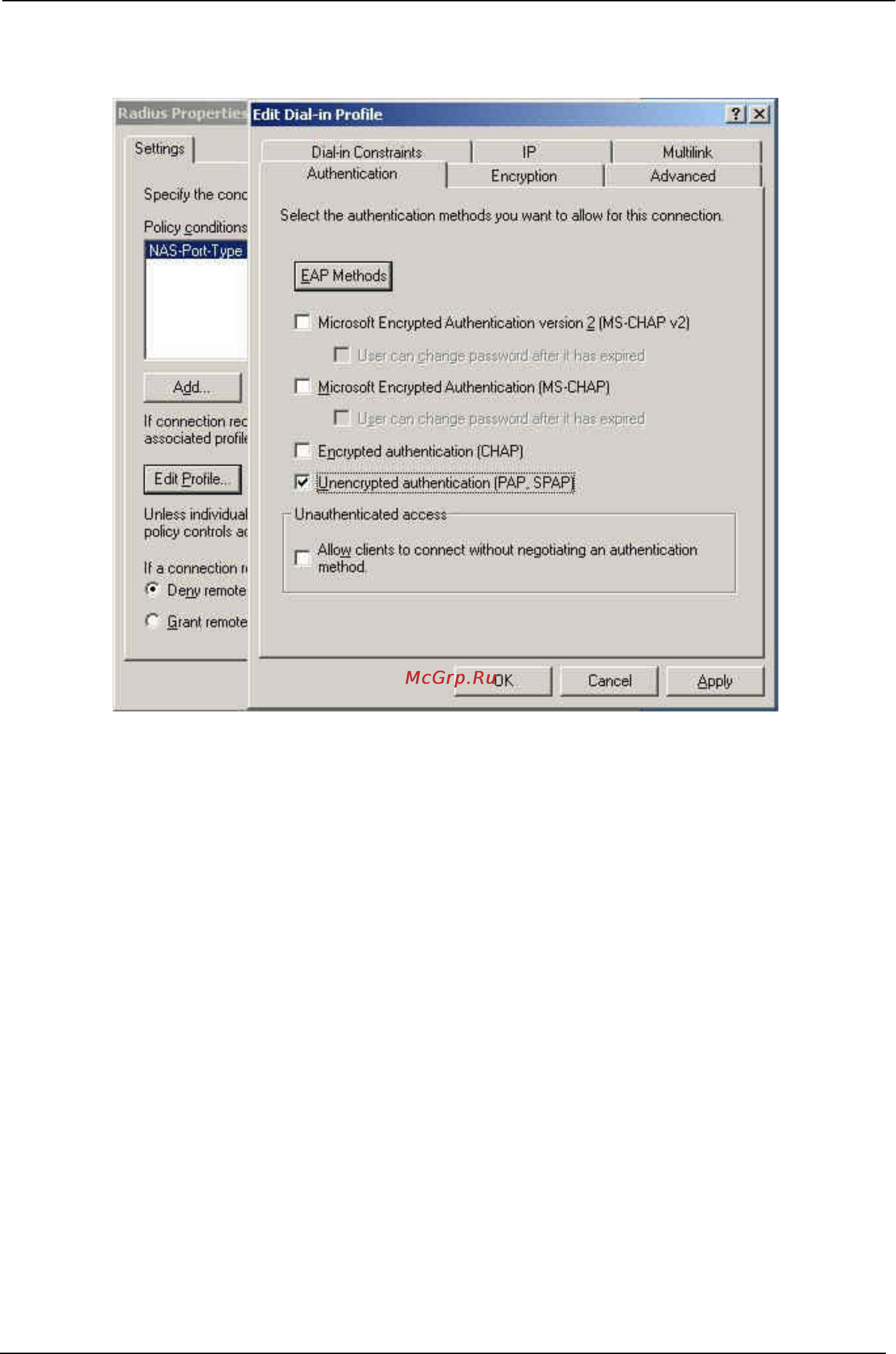

STEP 17 . Click Edit Profile, select Authentication, and check Unencrypted authentication (PAP, SPAP).
Edit RADIUS service-type dial-in property
- 85 -
