MH-2001 Multi-Homing Security Gateway User’s Manual

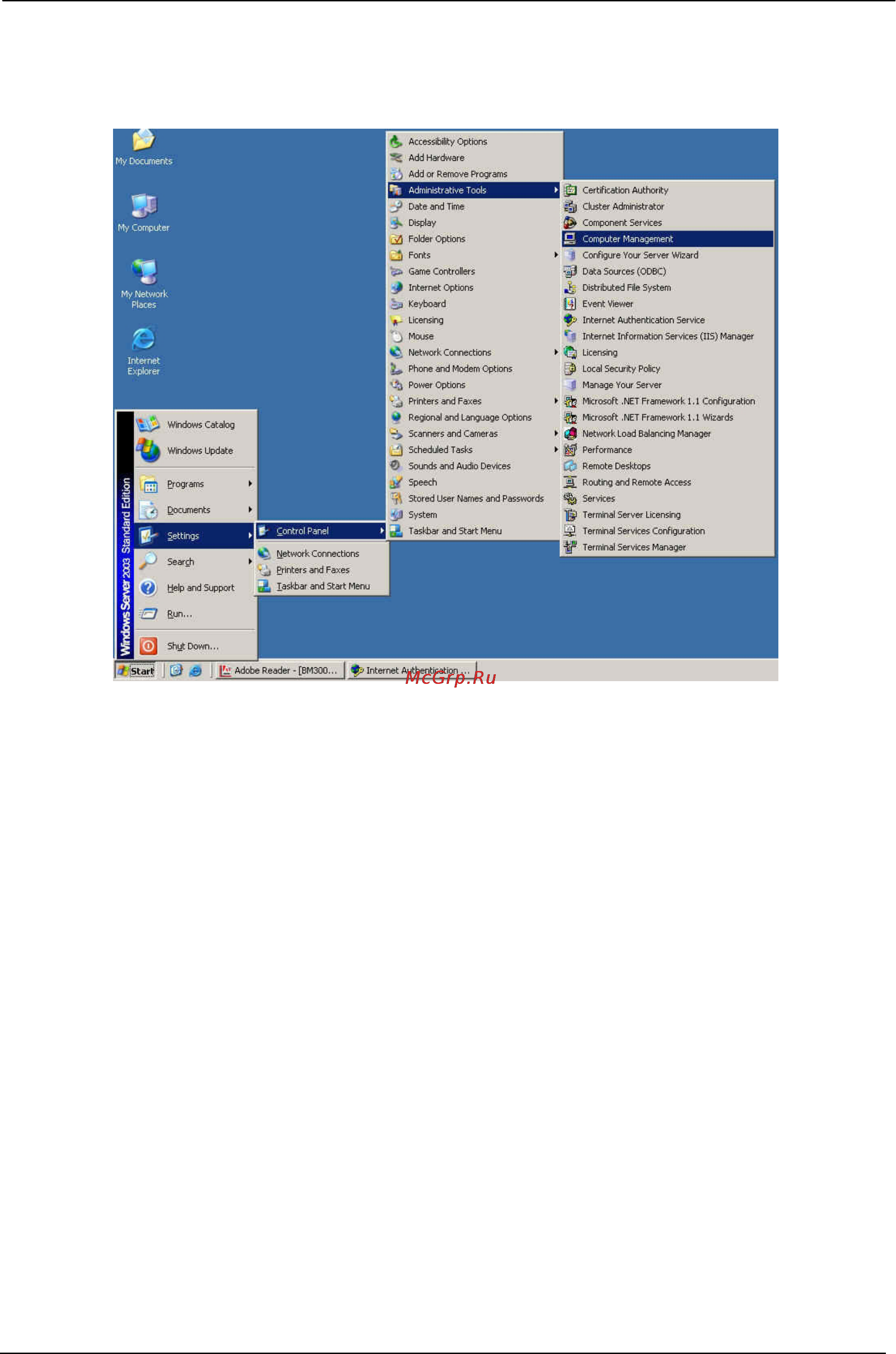

STEP 18 . Add Auth User, click Start Æ Setting Æ Control PanelÆAdministrative Tools, select
Computer Management.
Enter computer management
- 86 -
