MH-2001 Multi-Homing Security Gateway User’s Manual

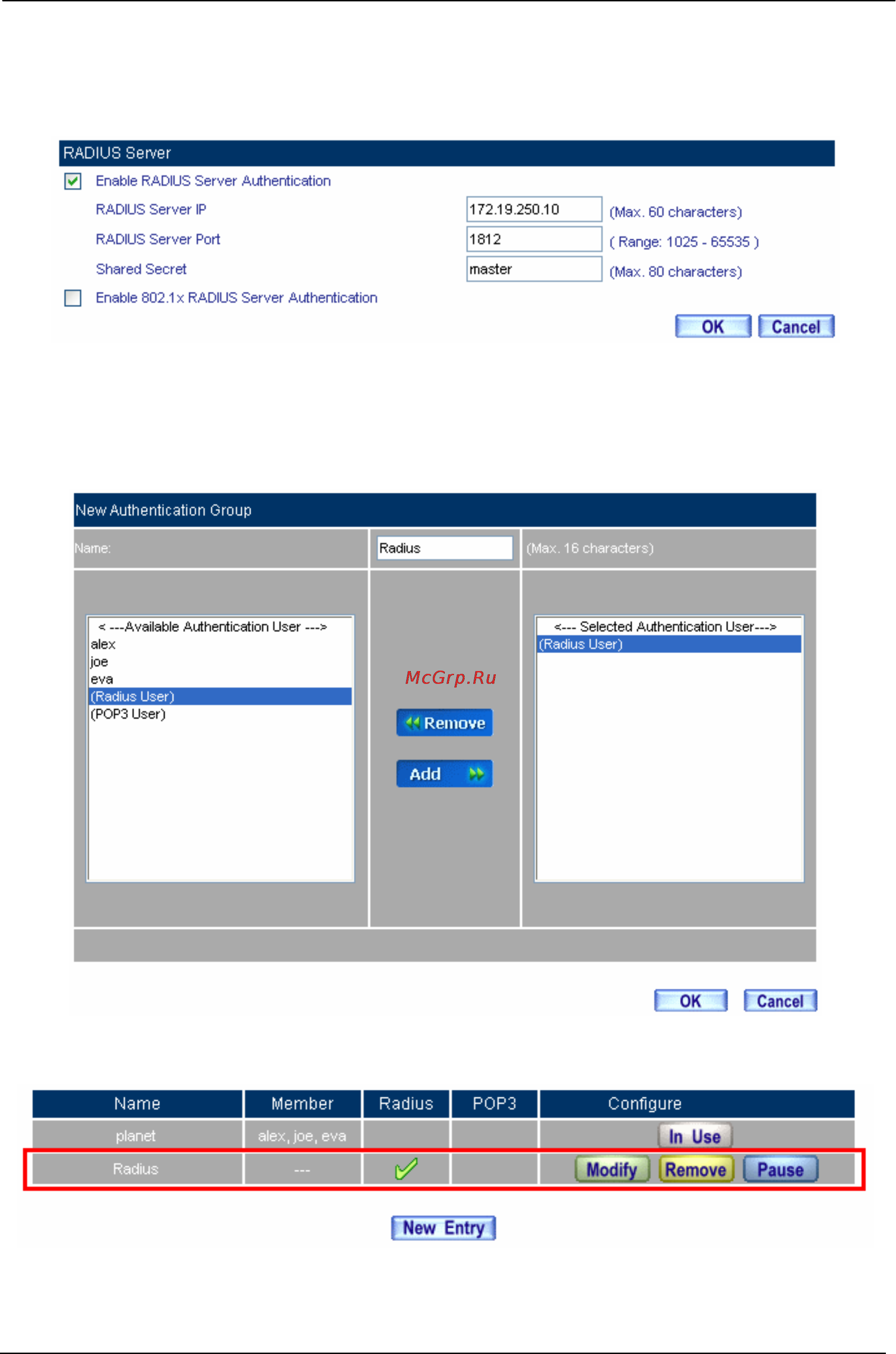

STEP 21 . In Authentication Æ RADIUS function, enter IP, Port and Shared Secret. (The setting must be
the same as RADIUS server).
The RADIUS server setting
STEP 22 . In Authentication Æ User Group, add new Radius User.
Add new RADIUS user
Complete adding a RADIUS Authentication
- 88 -
