MH-2001 Multi-Homing Security Gateway User’s Manual

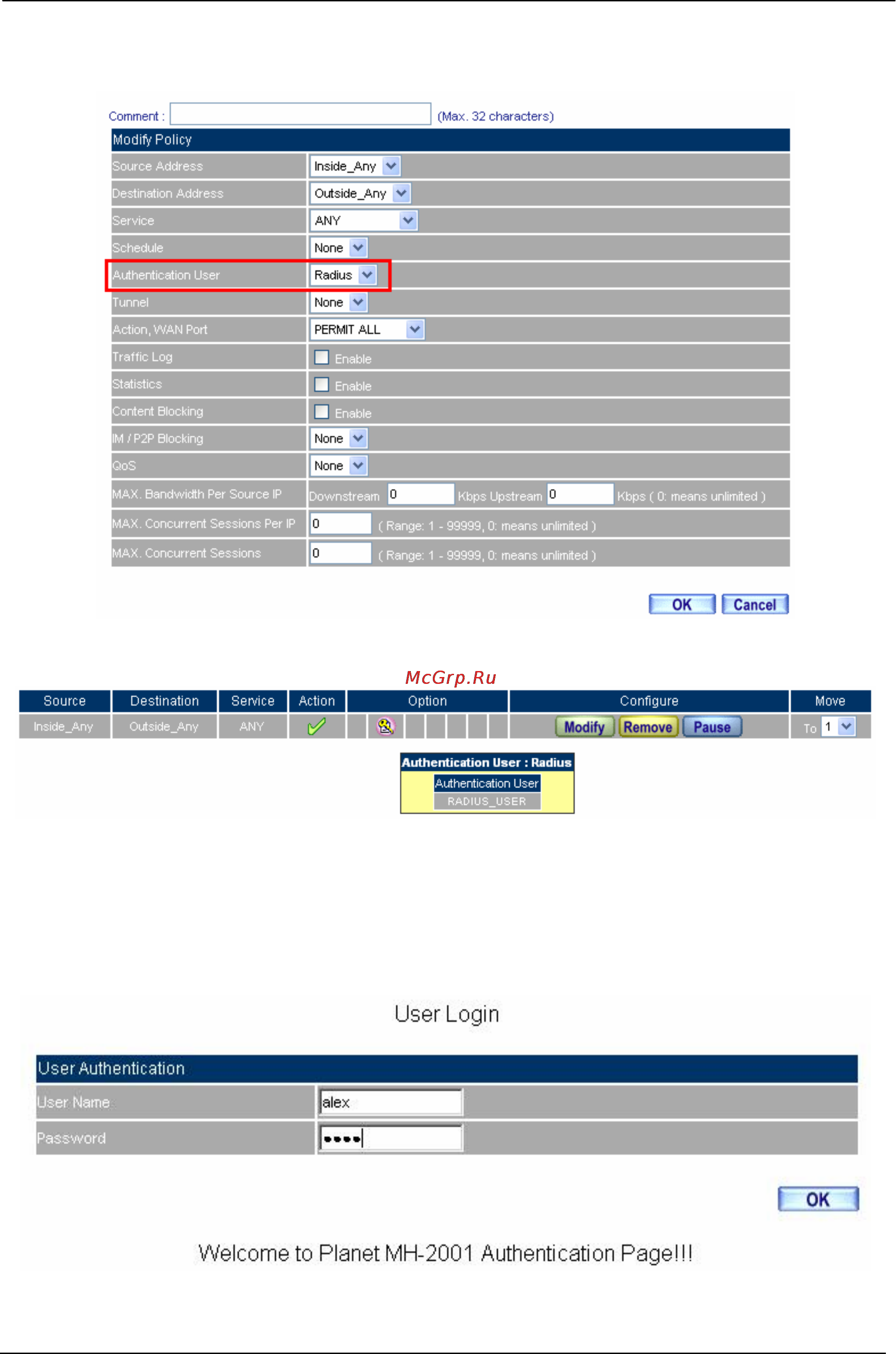

STEP 23 . In Policy Æ Outgoing, apply the Authentication Group (RADIUS included) in STEP22. To add
the new policy.
To add the RADIUS authentication policy
Complete the RADIUS authentication policy setting
STEP 24 . When the users connect to the network via the browser, it will show the authentication window.
Enter the user name and password, click OK, and then link to the network through the MH-2001.
Link to the network through the authentication window
- 89 -
