Printer and paper overview> 24

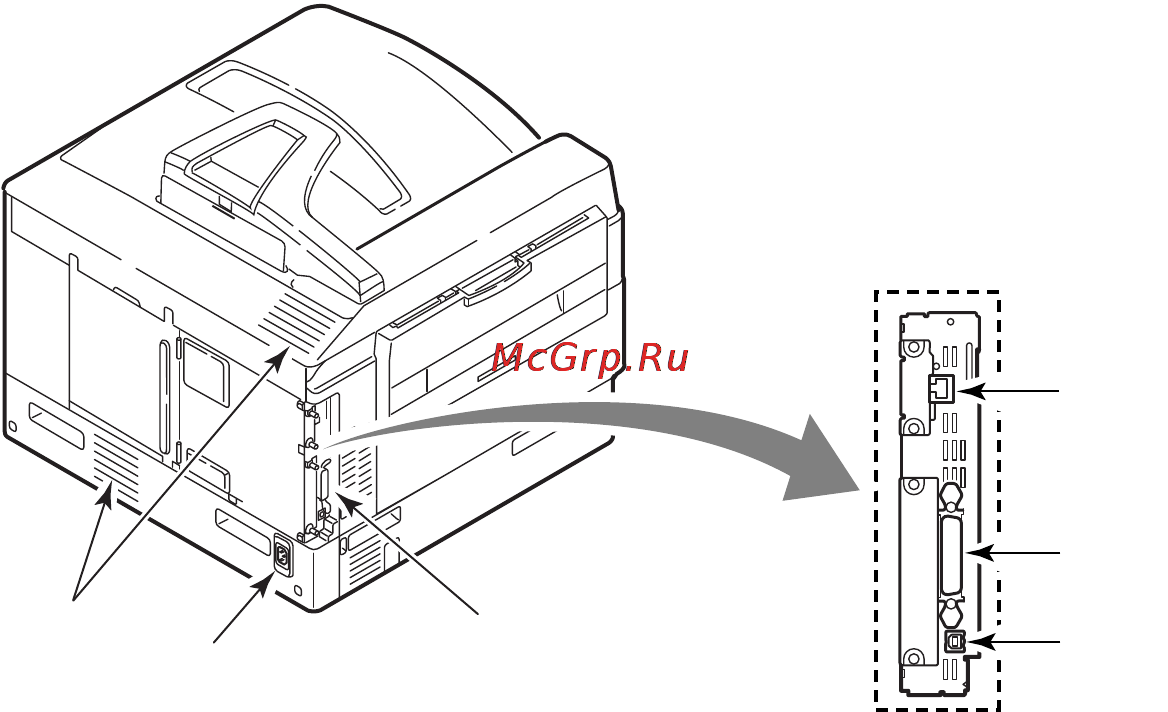

13. Interface unit

14. Network interface connector

15. Parallel interface connector

16. USB interface connector

17. Power connector

18. Ventilation openings
