Printer and paper overview> 25

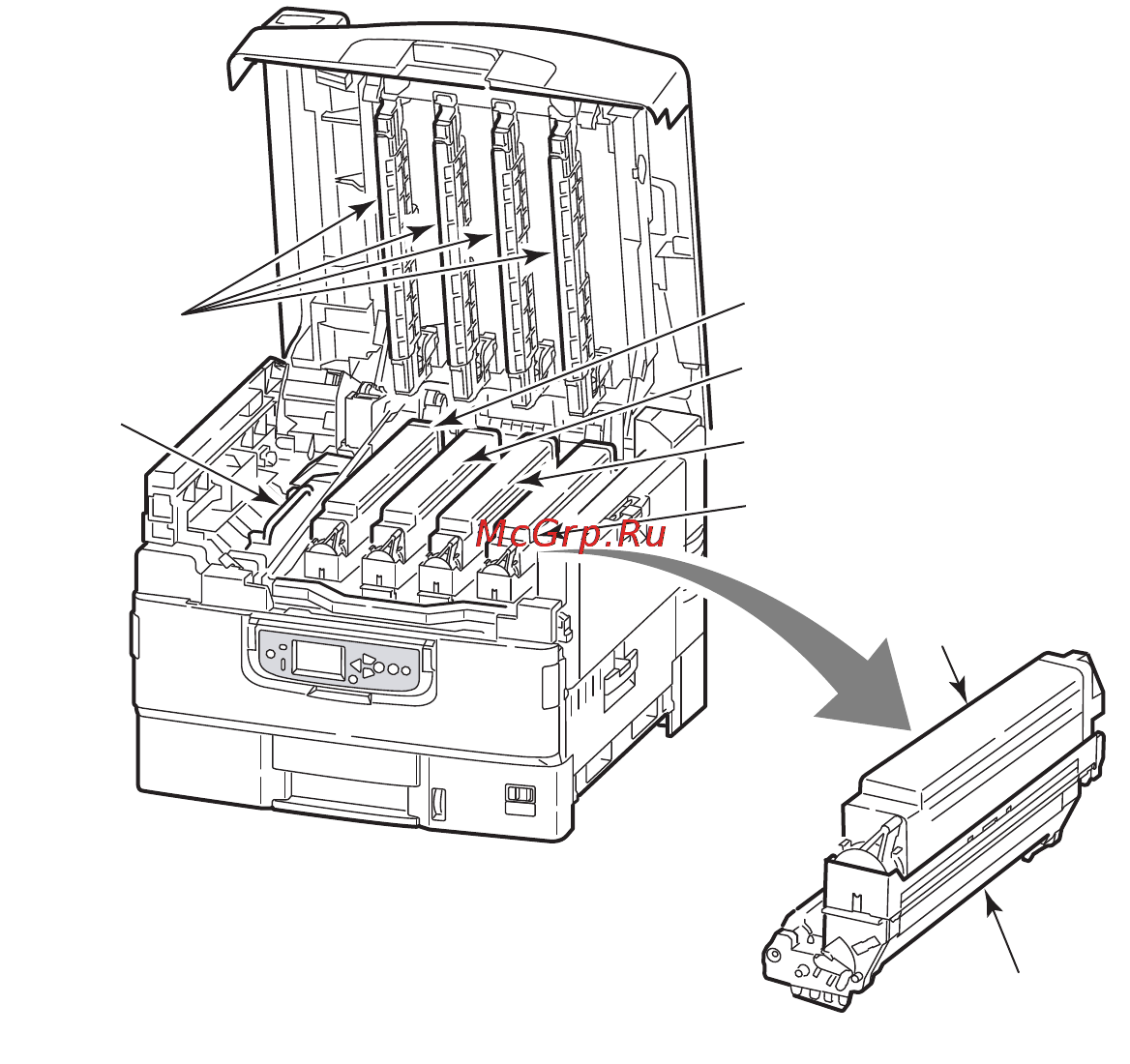

19. Image drum cartridge and toner cartridge (White)
20. Image drum cartridge and toner cartridge (Magenta)
21. Image drum cartridge and toner cartridge (Yellow)
22. Image drum cartridge and toner cartridge (Cyan)
23. Toner cartridge
24. Image drum cartridge
25. Fuser unit (Specifically for C920WT/ES9420WT)
26. LED heads
19
20
21
22
23
24
25
26
