1
PANEL DESCRIPTION
1-10
Push ➥
MENU
to change the set of functions assigned
to touch keys.
•TogglesthefunctiondisplaymenubetweenM-1,M-2and
M-3 menus or D-1 and D-2 menus.
•Functionsvary,dependingontheoperatingmode.
•IntheDRmode,theD-1andD-2menuscanbeselect-
ed.
Touch or touch for 1 second to select the displayed ➥
functions.

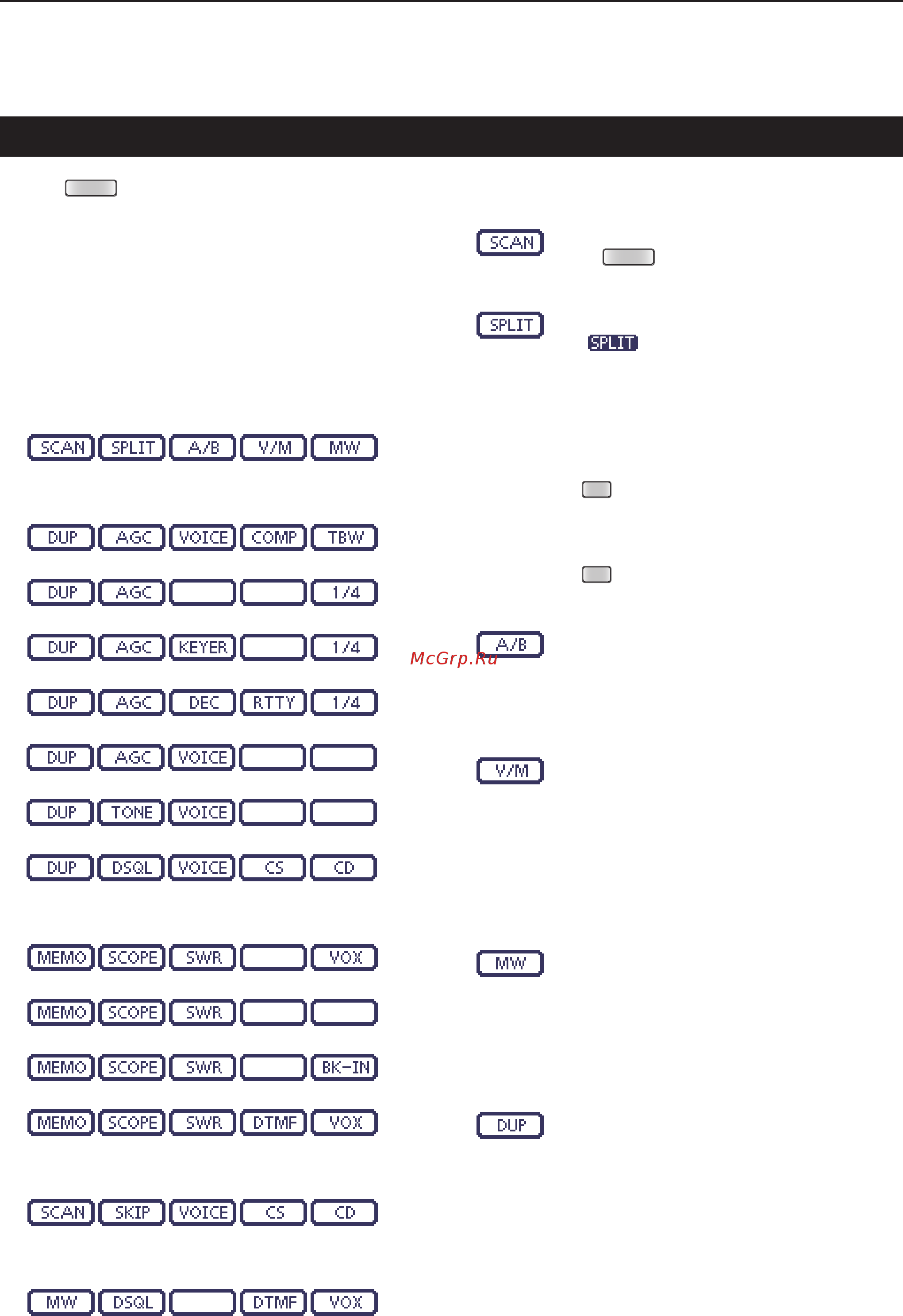

M-1 (M-1 menu) Display D
M-2 (M-2 menu) Display D
(Mode: SSB)
(Mode: SSB-D)
(Mode: CW)
(Mode: RTTY)
(Mode: AM/AM-D)
(Mode: FM/FM-D/WFM)
(Mode: DV)
M-3 (M-3 menu) Display D
(Mode: SSB/AM/AM-D)
(Mode: SSB-D/RTTY)
(Mode: CW)
(Mode: FM/FM-D/WFM/DV)
D-1 (D-1 menu) Display D
(Mode: DV, when the DR mode is selected)
D-2 (D-2 menu) Display D
(Mode: DV, when the DR mode is selected)
Controller — Multi-function keys
Function keys on M-1 display D
SCAN KEY [SCAN] (AI sec. 12)
Touch to display the “SCAN” screen.
•Push
MENU
to return to the previous screen.
SPLIT KEY [SPLIT] (AI sec. 6)
➥ Touch to turn the split function ON or OFF.
•“ ” appears when the split function is
ON.
➥ Touch for 1 second to activate the quick
split function.
•Thetransmitfrequencyshiftsfromthereceive
frequency according to the “SPLIT Offset” op-
tion in the “Function” Set mode. (AI sec. 6)
SET
> Function > SPLIT/DUP > SPLIT Offset
•ThequicksplitfunctioncanbeturnedOFFin
the “Quick SPLIT” item
of the “Function” Set
mode. (AI sec. 6)
SET
> Function > SPLIT/DUP > Quick SPLIT
VFO SELECT KEY [A/B] (p. 3-5)
➥Touch to select either VFO A or VFO B.
➥Touch
for 1 second to equalize the undis-
played VFO settings to that of the displayed
VFO.
VFO/MEMORY KEY [V/M]
➥ Touch to switch between the VFO and
memory modes. (p. 3-4)
•Touching Memory channel also selects the
VFO or memory modes.
➥ Touch for 1 second to copy the memory
contents to the displayed VFO. (AI sec.
11)
MEMORY WRITE KEY [MW] (AI sec. 11)
Touch for 1 second to store VFO data into the
selected memory channel.
•ThiscanbedoneinboththeVFOandmemory
modes.
Function keys on M-2 display D
DUPLEX KEY [DUP] (AI sec. 4)
➥ Touch to select the duplex direction, or to
turn OFF the function.
•“DUP–”or“DUP+”isdisplayedduringduplex
operation.
➥ In the FM mode, touch for 1 second to
turn the one-touch repeater function ON
or OFF.
