5
D-STAR OPERATION <BASIC>
5-9

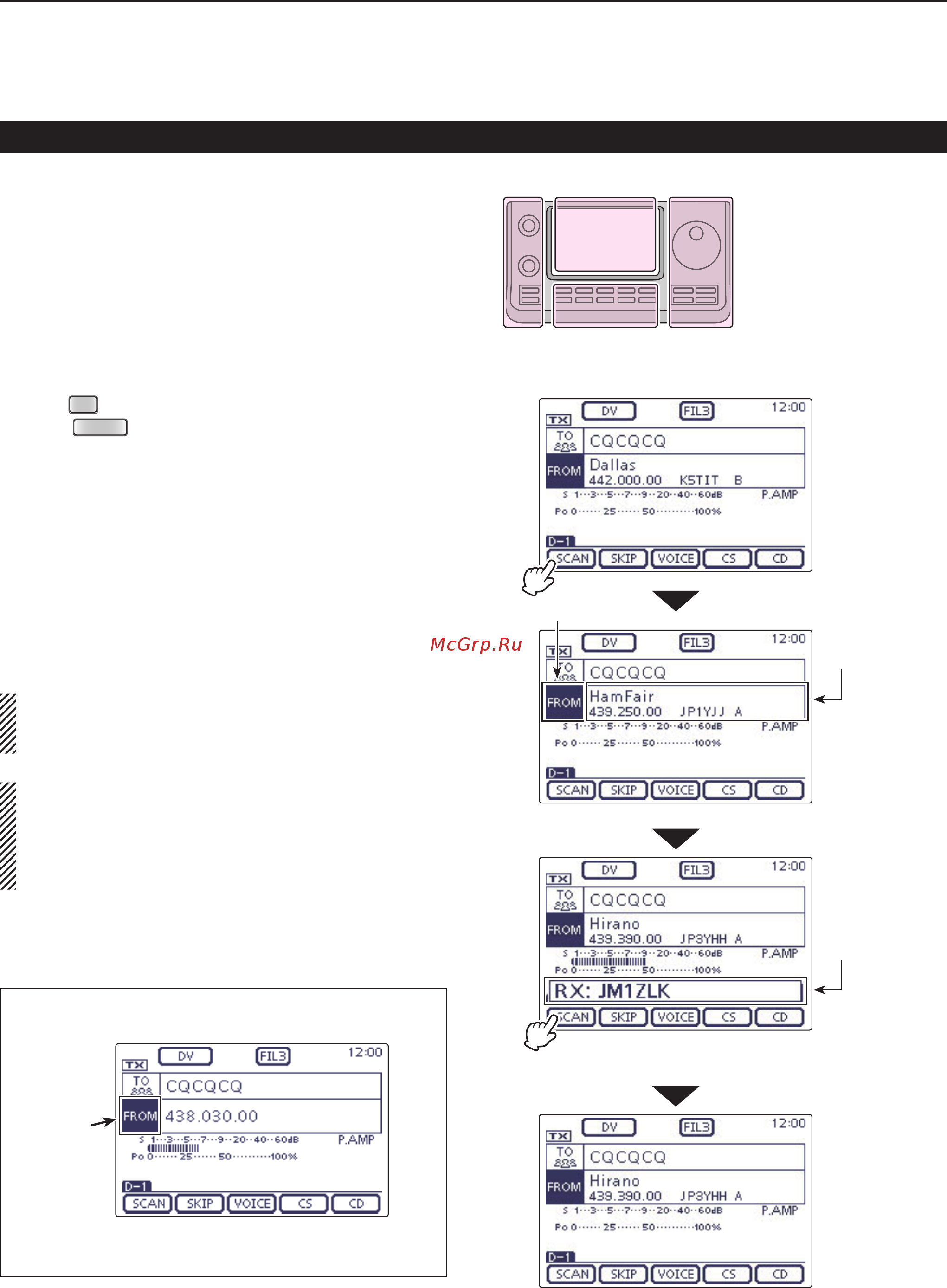

Using the DR mode scan D
The DR mode scan is useful to find a repeater.
To quickly find a repeater, the DR mode scan skips re-
peaters that are not specified as an access repeater.
(The “USE (FROM)” setting is set to “NO” (SKIP is set)
on the repeater list.)
Example: Select the “Hirano” repeater using the DR
mode scan.
Push q
DR
(C) to select the DR mode.
Push w
MENU
(C) to display the “D-1” screen (D-1
menu).
Touch [SCAN]( e D)
to start the DR mode scan.
•The frequency decimal point and “FROM” blink while
scanning.
•The repeaters in the repeater list are sequentially dis-
played.
•The scan pauses when a signal is received.The scan
resumes the same as other scans. (AI sec. 12)
When the transceiver receives a signal from a re- r
peater, the scan stops, then touch [SCAN](D)
.
•TheDRmodescaniscancelled.
You can skip certain repeaters as a scan target. You
can also skip all repeaters in certain groups from a
scan. See AI sec. 9 for details.
NOTE:
Even if the transceiver receives a signal from a re-
peater, the repeater may not receive the transceiv-
er’s signal, because the repeater’s output power is
higher than the transceiver’s.
“FROM” (Access repeater) setting (Continued)
While receiving a signal
from a repeater
While DR mode scanning
Blinks
The repeaters
are sequentially
displayed.
“Hirano” repeater is selected in
“FROM.”
Means “JM1ZLK”
is using the “Hi-
rano” repeater.
Touch [SCAN]
Touch [SCAN]
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
L
eft
R
ight
C
enter
D
isplay
The DR mode scan also scans simplex frequencies if
they are entered in the repeater list.
While receiving a
signal on 438.030.
Blinks
