5
D-STAR OPERATION <BASIC>
5-6
After you receive the repeater’s signal, the calling sta-
tion’s call sign can be captured by holding down the
Call Sign Capture key
AUTO TUNE
RX
�
CS
(R). Then you can
quickly and easily reply to the received call.

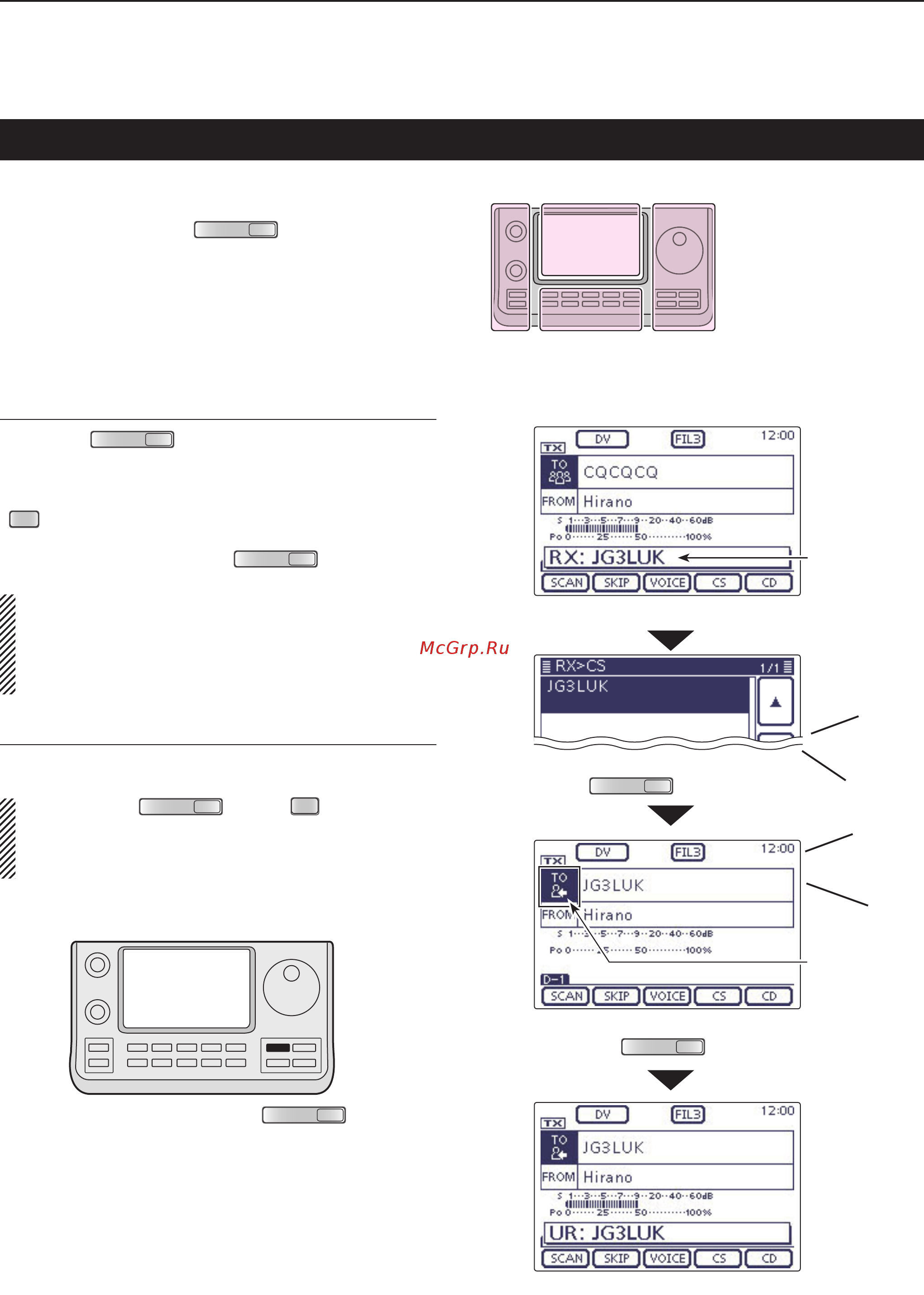

Capturing a call sign
Set the received call sign to the destination1.
Hold down
AUTO TUNE
RX
�
CS
(R) for 1 second.
•Afterreleasing,beepssound,andthestationcallsignisan-
nounced if the RX>CS Speech function is set to ON in the
“SPEECH” Set mode.
SET
(C) > SPEECH > RX>CS SPEECH
•IfyouwanttoselectanothercallsignintheRXhistory,ro-
tate [DIAL] while holding down
AUTO TUNE
RX
�
CS
(R).
NOTE: When a received signal is weak, or during
DR mode scanning, the call sign may not be received
correctly. In that case, “--------” appears, an error
beep sounds, and a quick reply call cannot be
made.
Hold down [PTT] to transmit2.
•Whileholdingdown[PTT],theTX/RXindicatorlightsred.
NOTE: Push
AUTO TUNE
RX
�
CS
(R) or
DR
(C), or touch
“FROM” on the DR mode screen to cancel the Call
Sign Capture mode, and return to the previous call
sign setting.
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
L
eft
R
ight
C
enter
D
isplay
AUTO TUNE
RX
�
CS
When receiv-
ing a call from
“JG3LUK.”
Beeps
JG3LUK
Appears af-
ter selecting
a call sign.
While receiving
While holding down
AUTO TUNE
RX
�
CS
(R)
Transmitting
After releasing
AUTO TUNE
RX
�
CS
(R)
