BASIC OPERATION
3-14
Setting frequency (Continued)
Programming the user band edge D
When“ON(User)”or“ON(User)&TXLimit”isselected
in the “Band Edge Beep” item, the “User Band Edge”
item appears in the “Function” Set mode.
A total of 30 band edge frequencies can be programmed
in the “User Band Edge” item.
NOTE:
•All frequency ranges are set to default, so you
should delete or change them to add the desired
band edge frequency.
•Programeachchannelfromlefttorightandeach
frequency must be higher than the preceding fre-
quency.
•Thefrequencythatisduplicated,oroutofatrans-
mit frequency range, cannot be programmed.
Push q
SET
(C) to enter the Set mode.
Touch the “Band Edge Beep” item of the “Function” w
Set mode.
Function > Band Edge Beep
•Ifthespecieditemisnotdisplayed,touch[Y] or [Z](D)
one or more times to select the page.
Touch the“ON (USER)” or“ON (User) &TX Limit” e
option.
Touch the “User Band Edge” item of the “Function” r
Set mode.
Function > User Band Edge
Follow the instructions in the next topics to delete, t
insert, edit, change or reset Band edges.
After you have finished, push y
SET
(C) to exit the Set
mode.

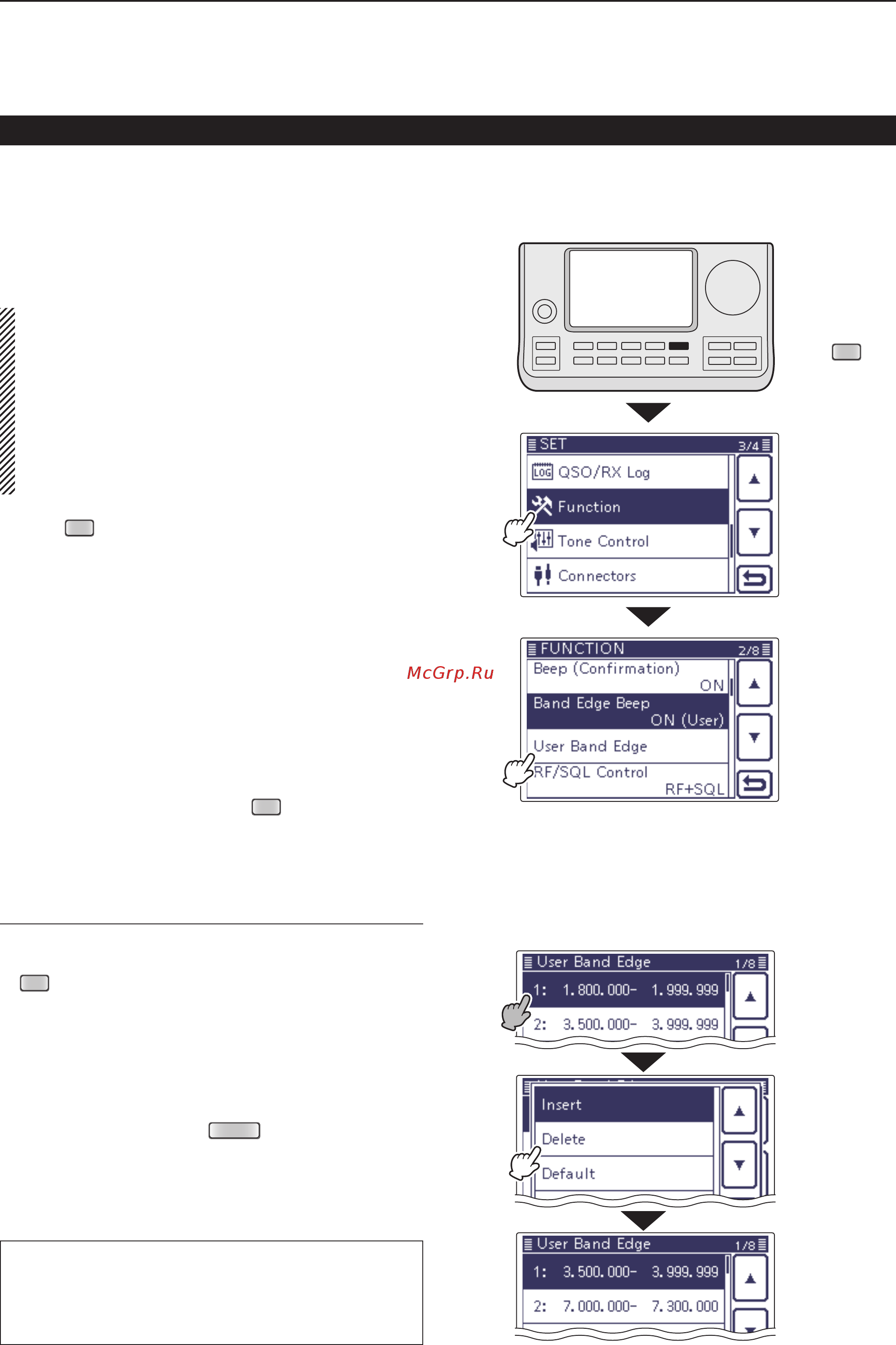

• Deleting a Band edge
Enter the “User Band Edge” screen. q
SET
(C) > Function > User Band Edge
Touch for 1 second the Band edge to be deleted w .
•Ifthespeciedbandedgeisnotdisplayed,touch[Y] or
[Z](D) one or more times to select the page.
Touch “Delete.” e
•TheselectedBandedgehasbeendeleted,andthenre-
turns to the User Band Edge screen.
Touch [ r ](D) or push
MENU
(C) to return to the
“Function” Set screen.
The L, R, C or D in the instructions indicate the
part of the controller.
L: Left side, R: Right side, C: Center bottom
D: Display (Touch screen)
Touch
“Function”
Push
SET
Touch “User
Band Edge”
Touch for 1 sec-
ond the Band
edge to be de-
leted
Touch “Delete”
Example: Deletes the 1.800–1.999999MHz range
