3
BASIC OPERATION
3-21
Voice synthesizer operation (Continued)

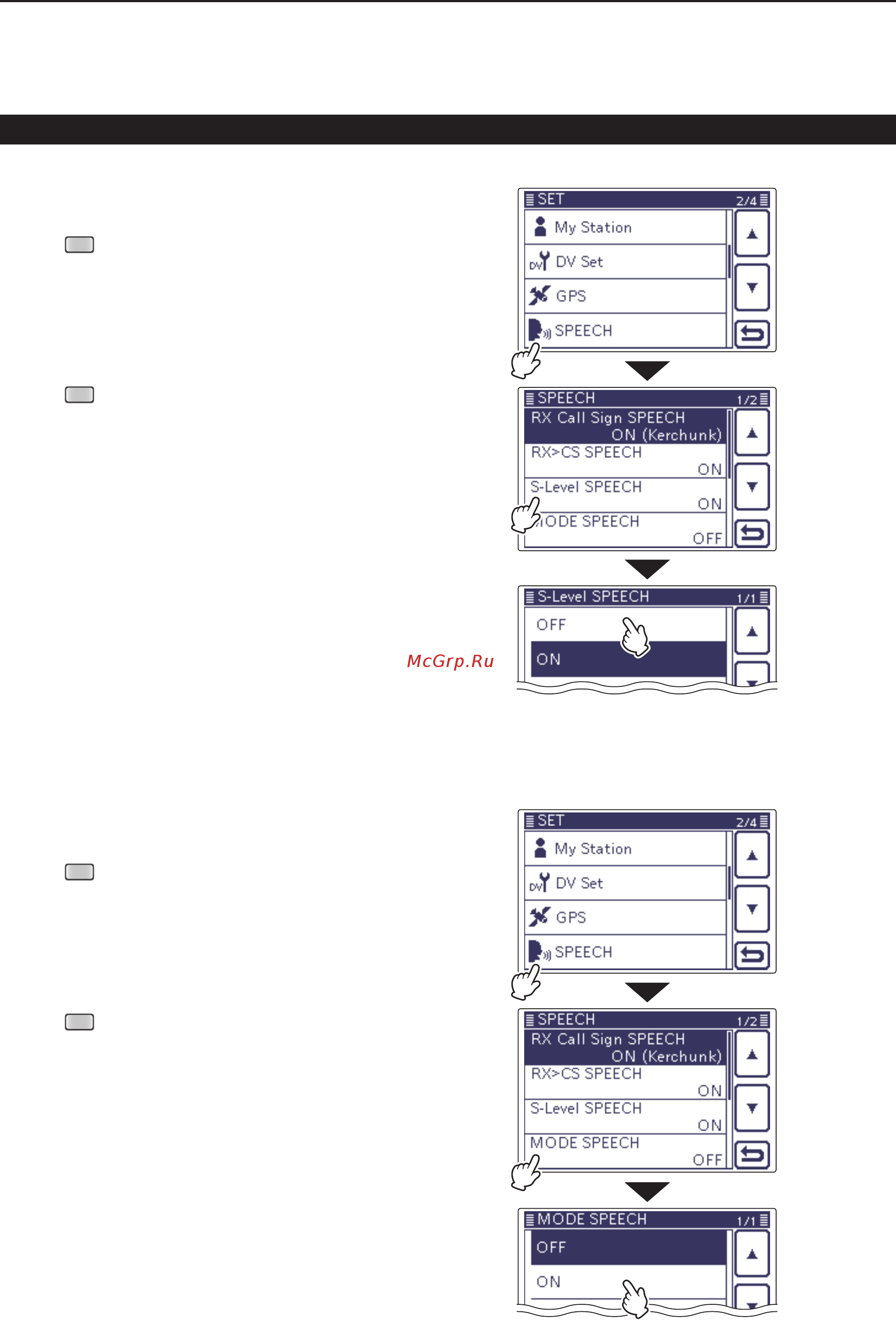

Tuning OFF the S-meter announcement D
The S-meter announcement can be turned OFF.
Push q
SET
(C) to enter the Set mode.
Touch the “S-Level SPEECH” item of the “SPEECH” w
Set mode.
SPEECH > S-Level SPEECH
•Ifthespecieditemisnotdisplayed,touch[Y] or [Z](D)
one or more times to select the page.
Touch the option to turn OFF the function. e
Push r
SET
(C) to exit the Set mode.
Tuning ON the MODE announcement D
When this function is ON, the selected operating mode
is verbally announced when a mode is selected.
Push q
SET
(C) to enter the Set mode.
Touch the “MODE SPEECH” item of the “SPEECH” w
Set mode.
SPEECH > MODE SPEECH
•Ifthespecieditemisnotdisplayed,touch[Y] or [Z](D)
one or more times to select the page.
Touch the option to turn ON the function. e
Push r
SET
(C) to exit the Set mode.
Touch
“SPEECH”
Touch “S-Level
SPEECH”
Touch “OFF”
Touch
“SPEECH”
Touch “MODE
SPEECH”
Touch “ON”
