3
BASIC OPERATION
3-15
Setting frequency (Continued)
Programming the user band edge (Continued) D
• Inserting a Band edge
Enter the “User Band Edge” screen. q
SET
(C) > Function > User Band Edge
Touch for 1 second the Band edge that you want to w
insert a new Band edge above it.
•Ifthedesired Bandedgeis notdisplayed,touch[Y] or
[Z](D) one or more times to select the page.
Touch “Insert.” e
•Thefrequencyentryscreenisdisplayed.
Touch desired numbers to edit the lower edge fre- r
quency, and then touch [ENT](D).
•The cursor movesto the upper frequency entry, and a
same frequency as lower frequency is automatically in-
put.
•Touch[t u](D) to toggle the lower or upper frequency
entry.
•Touch[f] or [g](D) to move the cursor left or right.
•Before entering the frequencies, touch [](D) or push
MENU
(C) to insert a blank field.
Touch desired numbers to edit the upper edge fre- t
quency, and then touch [ENT](D).
Touch [ y ](D) or push
MENU
(C) to return to the
“Function” Set screen.
• Editing a new Band edge
Enter the “User Band Edge” screen. q
SET
(C) > Function > User Band Edge
Touch a blanked field. w
•If the desired blank eld is not displayed, touch [Y] or
[Z](D) one or more times to select the page.
•Thefrequencyentryscreenisdisplayed.
Touch desired numbers to edit the lower edge fre- e
quency, and then touch [ENT](D).
•The cursor movesto the upper frequency entry, and a
same frequency as lower frequency is automatically in-
put.
•Touch[t u](D) to toggle the lower or upper frequency
entry.
•Touch[f] or [g](D) to move the cursor left or right.
Touch desired numbers to edit the upper edge fre- r
quency, and then touch [ENT](D).
Touch [ t ](D) or push
MENU
(C) to return to the
“Function” Set screen.
The L, R, C or D in the instructions indicate the
part of the controller.
L: Left side, R: Right side, C: Center bottom
D: Display (Touch screen)

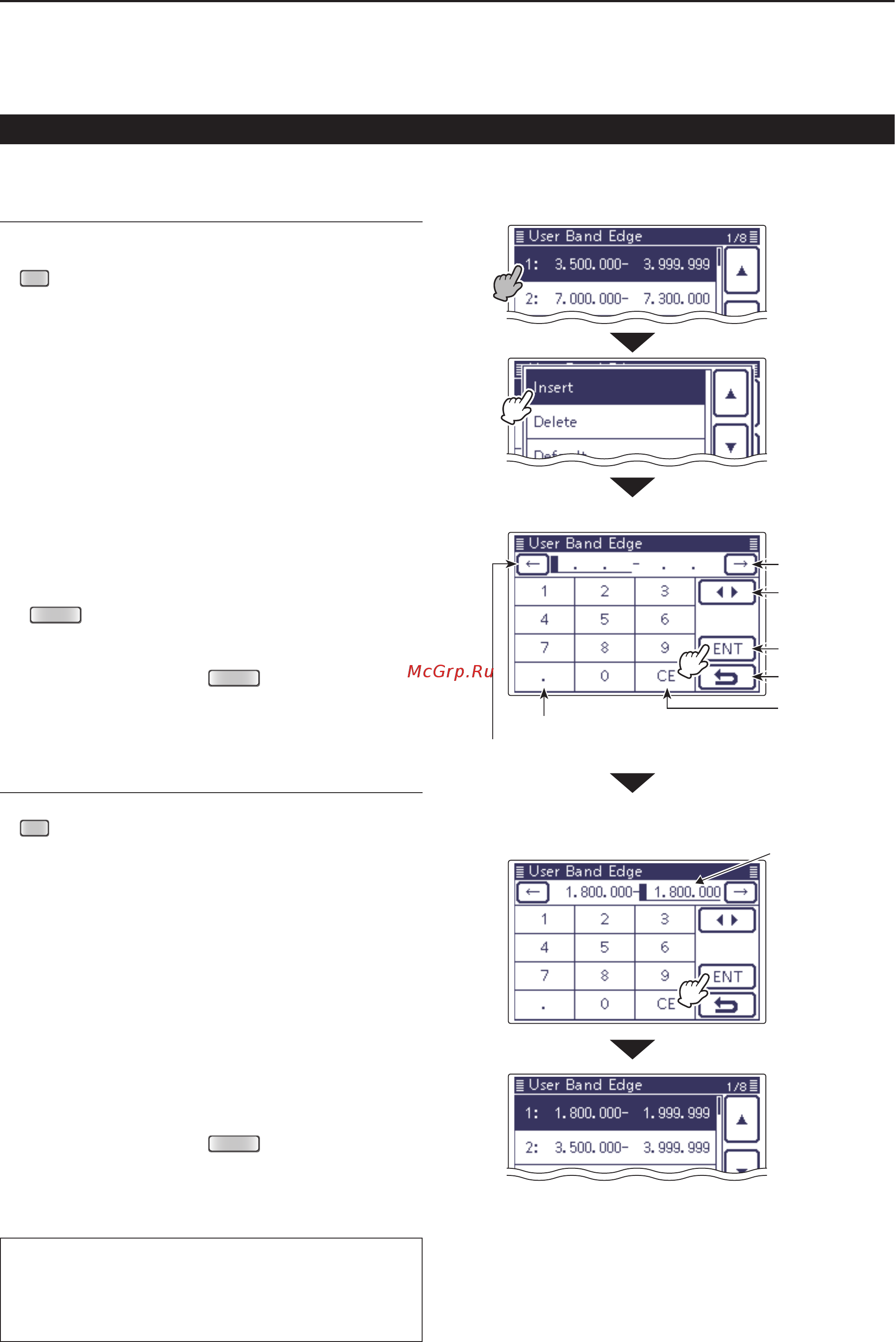

Example: Inserts the 1.800–1.999999 MHz range
Touch the Band
edge for 1 sec-
ond
Touch “Insert”
Edit the lower
edge frequency,
then touch [ENT]
Edit the upper
edge frequency,
then touch [ENT]
Same frequency as lower fre-
quency is automatically input
Enter the decimal point
•Thefrequencyentryscreen
Move the cursor
Move the cursor
Selects upper or
lower edges
Enter
Cancel edit
Delete entering
