D-STAR OPERATION <BASIC>
5-8
When your access repeater is preloaded in your trans-
ceiver’s repeater list, you can select it from the repeater
list.
By only selecting the repeater from the list, the call
sign, frequency, duplex and offset frequency settings
are automatically set for easy operation.
Example: Select the “Hirano” repeater in Japan from
the repeater list.

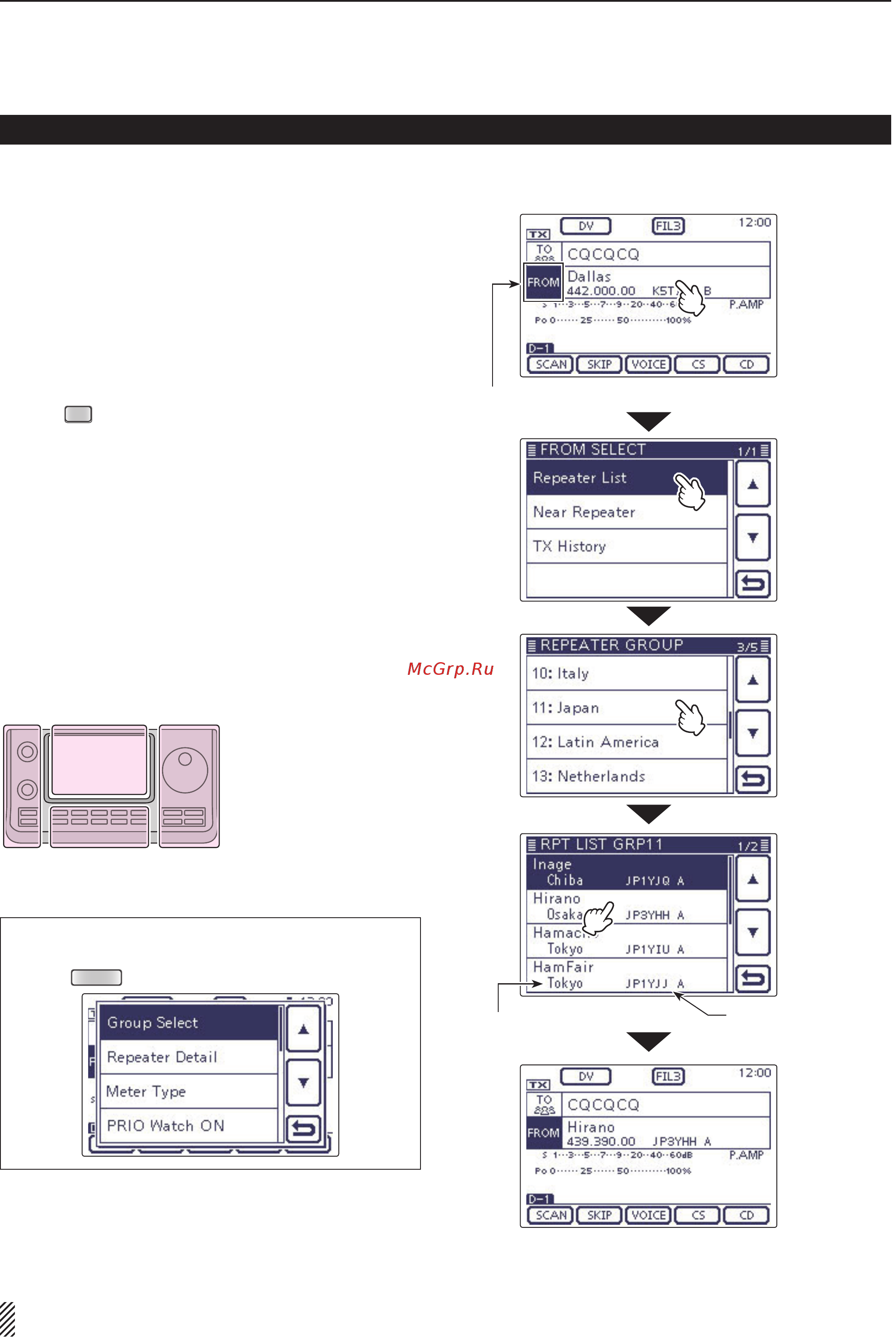

Push q
DR
(C) to select the DR mode.
Check whether or not “FROM” is selected. w
•If“FROM”isnotselected,touchthe“FROM”eld.
Touch the “FROM” field. e
•The“FROMSELECT”screenappears.
Touch “Repeater List.” r
•The“REPEATERGROUP”screenappears.
Touch the repeater group where your access repeat- t
er is listed. (Example: “11: Japan”)
Touch your access repeater to select the repeater y
area or name. (Example: “Hirano”)
•ThetransceiverreturnstotheDRmodescreen,andthe
selected repeater is set in “FROM.”
Using the preloaded repeater list D
How to switch the repeater group:
To switch the repeater group, while in the DR mode, ➥
push
QUICK
(C), and then touch “Group Select”
“FROM” (Access repeater) setting (Continued)
Repeater area
(Sub name)
Repeater call sign
“FROM” is selected.
“Hirano” is set on “FROM.”
Touch
“FROM.”
Touch
“Repeater List.”
Touch the re-
peater group
( Example:
“11: Japan”)
Touch your ac-
cess repeater.
( Example:
“Hirano”)
The repeater list, described in this manual, may dif-
fer from your transceiver’s preloaded list.
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
